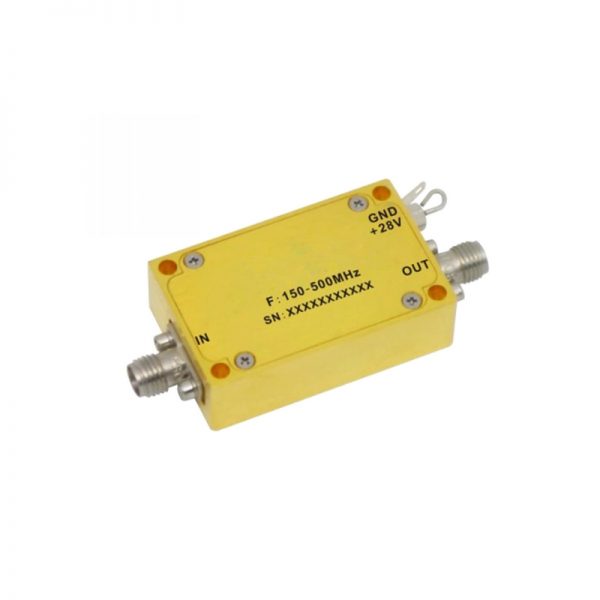

Ultra Wide Band Low Noise Amplifier From 0.15GHz to 0.5GHz With a Nominal 26dB Gain NF 0.7dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.15GHz to 0.5GHz With a Nominal 26dB Gain NF 0.7dB SMA Connectors

0 out of 5

• Gain: 26dB Typical
• Noise Figure: 0.7dB Typical
• P1dB Output Power: +22dBm Typical
• Supply Voltage: +28V
• 50 Ohm Matched Input / Output

SKU: OLNA100150050A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 26dB Typical
• Noise Figure: 0.7dB Typical
• P1dB Output Power: +22dBm Typical
• Supply Voltage: +28V
• 50 Ohm Matched Input / Output



Data Sheet ( Download Datasheet PDF )

137-OLNA100150050A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.15

Max. Pass Band Frequency (GHz)

0.5

Gain (dB)

26

NF (dB)

0.7

P1dB (dBm)

22

IP3 (dBm)

36

VSWR

1.4

"Voltage (VDC)"

28

"Current (mA)"

115

Connection Type

SMA
