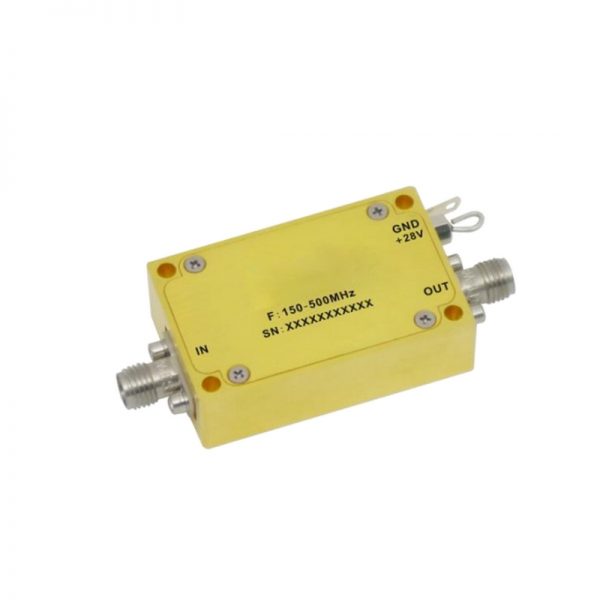

Ultra Wide Band Low Noise Amplifier From 0.15GHz to 0.5GHz With a Nominal 42dB Gain NF 0.8dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.15GHz to 0.5GHz With a Nominal 42dB Gain NF 0.8dB SMA Connectors

0 out of 5

• Gain: 42dB Typical
• Noise Figure: 0.8 Typical
• P1dB Output Power: +20dBm Typical
• Supply Voltage: +28V
• 50 Ohm Matched Input / Output

SKU: OLNA200150050A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 42dB Typical
• Noise Figure: 0.8 Typical
• P1dB Output Power: +20dBm Typical
• Supply Voltage: +28V
• 50 Ohm Matched Input / Output



Data Sheet ( Download Datasheet PDF )

139-OLNA200150050A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.15

Max. Pass Band Frequency (GHz)

0.5

Gain (dB)

42

NF (dB)

0.8

P1dB (dBm)

20

IP3 (dBm)

28

VSWR

1.5

"Voltage (VDC)"

28

"Current (mA)"

200

Connection Type

SMA
