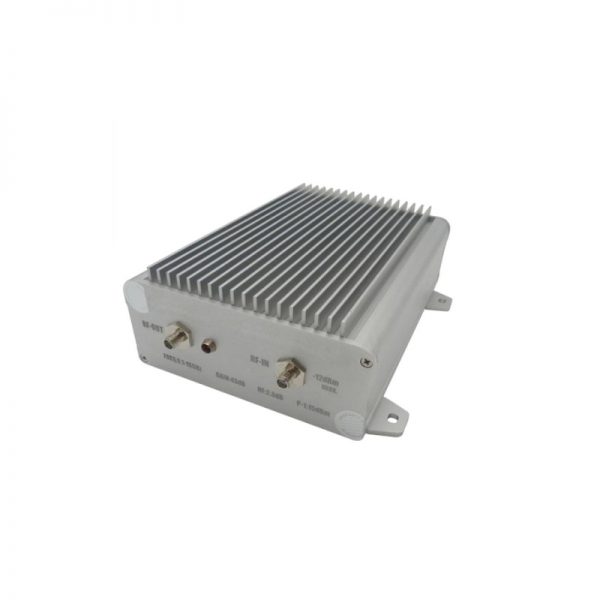

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 18GHz With a Nominal 38dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 18GHz With a Nominal 38dB Gain NF 2.5dB SMA Connectors

0 out of 5

• High Output Power 16dBm typical.
• High peak to average handling capability.
• High linearity and low noise figure.
• Convenient AC Power Input. (AC 110V ~ 220V)
• Integrated Heat Sink and Fan.

SKU: OACLA00101800B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• High Output Power 16dBm typical.
• High peak to average handling capability.
• High linearity and low noise figure.
• Convenient AC Power Input. (AC 110V ~ 220V)
• Integrated Heat Sink and Fan.



Data Sheet ( Download Datasheet PDF )

223-OACLA00101800B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.1

Max. Pass Band Frequency (GHz)

18

Gain (dB)

38

NF (dB)

2.5

P1dB (dBm)

14.5

IP3 (dBm)

26

VSWR

2

"Voltage (VDC)"

220AC

"Current (mA)"

60

Connection Type

SMA
