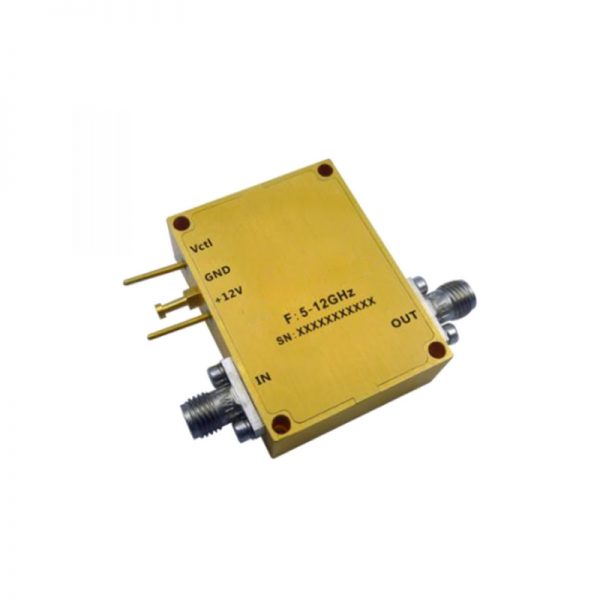

Ultra Wide Band Low Noise Amplifier From 5GHz to 12GHz With a Nominal 37dB Gain NF 1.8dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 5GHz to 12GHz With a Nominal 37dB Gain NF 1.8dB SMA Connectors

0 out of 5

• Gain: 37dB Typical
• Noise Figure: 1.8dB Typical
• Output P1dB : +23dBm Typical
• PSAT Output Power: 24dBm
• Supply Voltage: +12V

SKU: OLNA205001200A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 37dB Typical
• Noise Figure: 1.8dB Typical
• Output P1dB : +23dBm Typical
• PSAT Output Power: 24dBm
• Supply Voltage: +12V



Data Sheet ( Download Datasheet PDF )

210-OLNA205001200A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

5

Max. Pass Band Frequency (GHz)

12

Gain (dB)

37

NF (dB)

1.8

P1dB (dBm)

23

IP3 (dBm)

32

VSWR

1.8

"Voltage (VDC)"

12

"Current (mA)"

150

Connection Type

SMA
