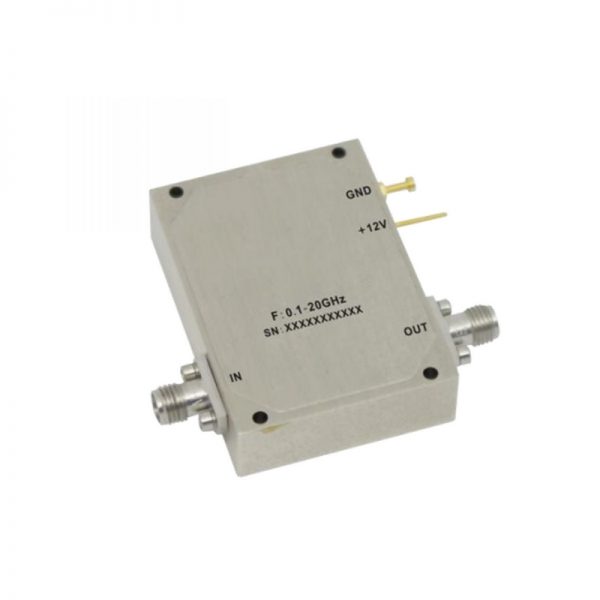

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 20GHz With a Nominal 39dB Gain NF 3.4dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 20GHz With a Nominal 39dB Gain NF 3.4dB SMA Connectors

0 out of 5

• Gain:43dB Typical
• Noise Figure:2.5dB Typical
• P1dB Output Power: +16dBm Typical
• Supply Voltage: +12V @ 200mA
• 50 Ohm Matched

SKU: OLNA400102000A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain:43dB Typical
• Noise Figure:2.5dB Typical
• P1dB Output Power: +16dBm Typical
• Supply Voltage: +12V @ 200mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

132-OLNA400102000A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.1

Max. Pass Band Frequency (GHz)

20

Gain (dB)

39

NF (dB)

3.4

P1dB (dBm)

14

IP3 (dBm)

26

VSWR

1.5

"Voltage (VDC)"

12

"Current (mA)"

200

Connection Type

SMA
