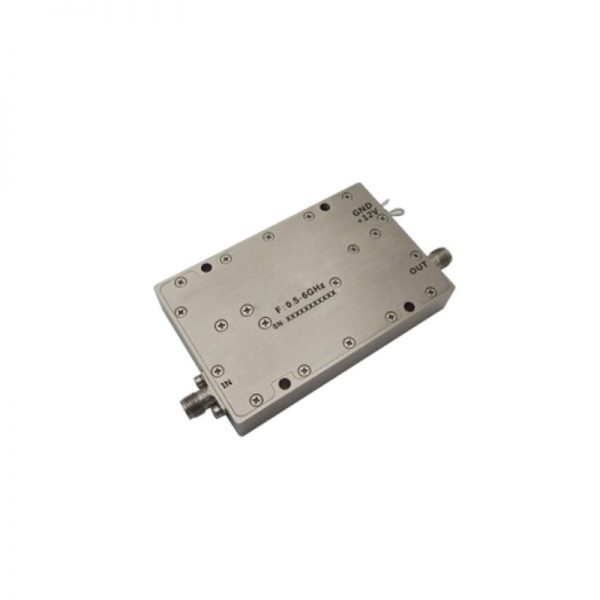

Ultra Wide Band Low Noise Amplifier From 0.5GHz to 6GHz With a Nominal 33dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.5GHz to 6GHz With a Nominal 33dB Gain NF 2.5dB SMA Connectors

0 out of 5

• Gain: 35dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +25dBmTypical
• Supply Voltage: +12V

SKU: OLNA300500600A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 35dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +25dBmTypical
• Supply Voltage: +12V



Data Sheet ( Download Datasheet PDF )

107-OLNA300500600A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.5

Max. Pass Band Frequency (GHz)

6

Gain (dB)

33

NF (dB)

2.5

P1dB (dBm)

24

IP3 (dBm)

35

VSWR

3

"Voltage (VDC)"

12

"Current (mA)"

250

Connection Type

SMA
