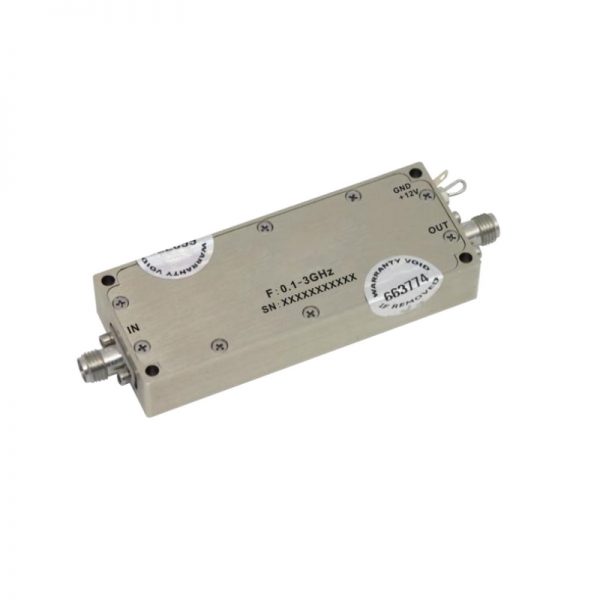

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 3GHz With a Nominal 33dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 3GHz With a Nominal 33dB Gain NF 2.5dB SMA Connectors

0 out of 5

• Gain:33dBTypical
• Noise Figure: 2.0dB Typical
• P1dB Output Power: +22dBm Typical
• Supply Voltage: +12V @ 310mA
• 50 OhmMatched

SKU: OLNA200100300A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain:33dBTypical
• Noise Figure: 2.0dB Typical
• P1dB Output Power: +22dBm Typical
• Supply Voltage: +12V @ 310mA
• 50 OhmMatched



Data Sheet ( Download Datasheet PDF )

050-OLNA200100300A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.1

Max. Pass Band Frequency (GHz)

3

Gain (dB)

33

NF (dB)

2.5

P1dB (dBm)

22

IP3 (dBm)

34

VSWR

1.6

"Voltage (VDC)"

12

"Current (mA)"

310

Connection Type

SMA
