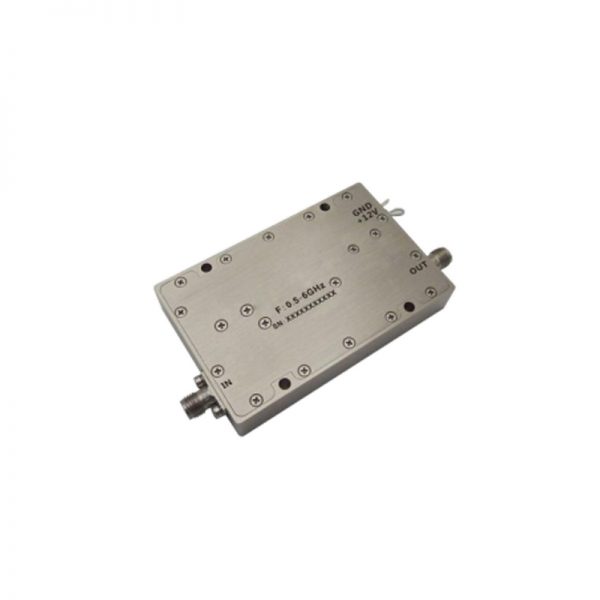

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 6GHz With a Nominal 30dB Gain NF 3dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 6GHz With a Nominal 30dB Gain NF 3dB SMA Connectors

0 out of 5

• High Output Power 25dBm typical.
• High peak to average handling capability.
• High linearity and low noise figure.
• Convenient AC Power Input. (AC 110V/220V)
• Integrated Heat Sink and Fan.

SKU: OACLA00100600A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• High Output Power 25dBm typical.
• High peak to average handling capability.
• High linearity and low noise figure.
• Convenient AC Power Input. (AC 110V/220V)
• Integrated Heat Sink and Fan.



Data Sheet ( Download Datasheet PDF )

108-OACLA00100600A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.1

Max. Pass Band Frequency (GHz)

6

Gain (dB)

30

NF (dB)

3

P1dB (dBm)

25

IP3 (dBm)

35

VSWR

2

"Voltage (VDC)"

110-220V

"Current (mA)"

300

Connection Type

SMA
