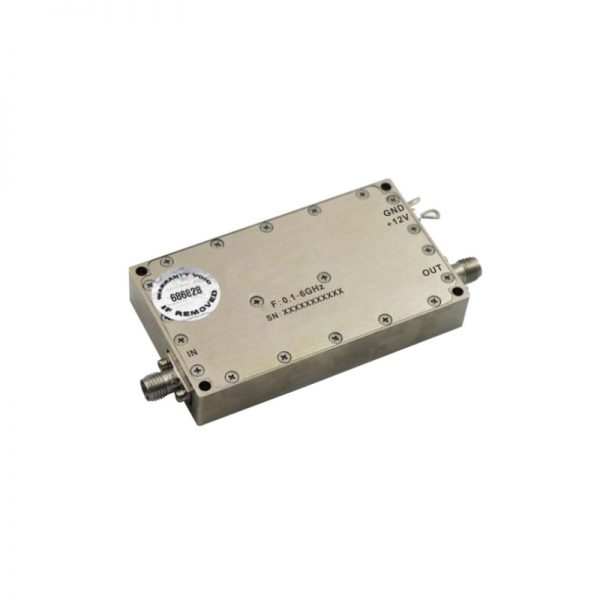

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 6GHz With a Nominal 33dB Gain NF 3.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 6GHz With a Nominal 33dB Gain NF 3.5dB SMA Connectors

0 out of 5

• Gain: 30dB Typical
• Noise Figure: 3.0dB Typical
• Output P1dB : +26dBm
• Supply Voltage: +12V
• 50 Ohm Matched

SKU: OLNA400100600B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 30dB Typical
• Noise Figure: 3.0dB Typical
• Output P1dB : +26dBm
• Supply Voltage: +12V
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

051-OLNA400100600B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.1

Max. Pass Band Frequency (GHz)

6

Gain (dB)

33

NF (dB)

3.5

P1dB (dBm)

26

IP3 (dBm)

34

VSWR

1.5

"Voltage (VDC)"

12

"Current (mA)"

290

Connection Type

SMA
