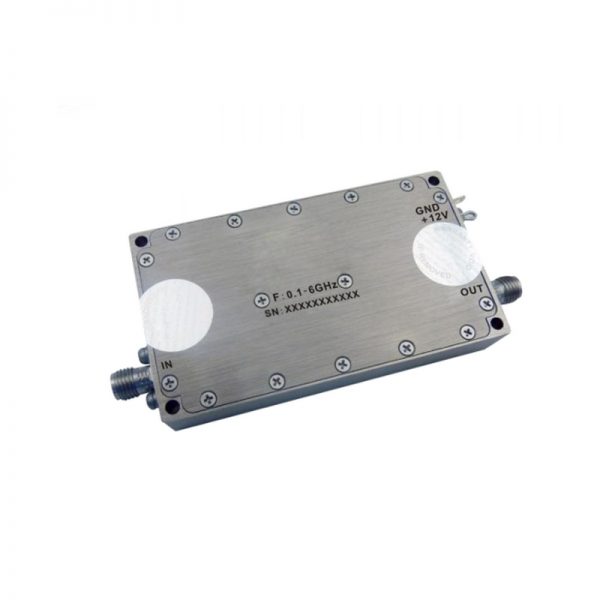

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 6GHz With a Nominal 35dB Gain NF 3.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 6GHz With a Nominal 35dB Gain NF 3.5dB SMA Connectors

0 out of 5

• Gain: 38dB Typical
• Noise Figure: 2.8dB Typical
• Output P1dB : +21dBmTypical
• Supply Voltage: +12V

SKU: OLNA300100600C Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 38dB Typical
• Noise Figure: 2.8dB Typical
• Output P1dB : +21dBmTypical
• Supply Voltage: +12V



Data Sheet ( Download Datasheet PDF )

047-OLNA300100600C



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.1

Max. Pass Band Frequency (GHz)

6

Gain (dB)

35

NF (dB)

3.5

P1dB (dBm)

18

IP3 (dBm)

28

VSWR

2.5

"Voltage (VDC)"

12

"Current (mA)"

300

Connection Type

SMA
