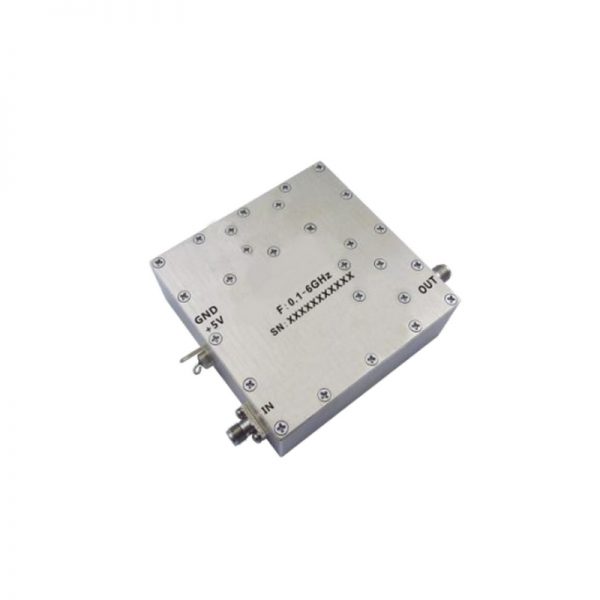

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 6GHz With a Nominal Pout-PindB Gain NF N/AdB SMA-Female Connectors

Ultra Wide Band Low Noise Amplifier From 0.1GHz to 6GHz With a Nominal Pout-PindB Gain NF N/AdB SMA-Female Connectors

• Ultra Wide Band 0.1-6GHz
• Input power dynamic range ≤60dB
• Output Power: 0dBm Typical
• Supply Voltage: +5V

SKU: OLNA300100600A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Ultra Wide Band 0.1-6GHz
• Input power dynamic range ≤60dB
• Output Power: 0dBm Typical
• Supply Voltage: +5V



Data Sheet ( Download Datasheet PDF )

204-OLNA300100600A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.1

Max. Pass Band Frequency (GHz)

6

Gain (dB)

Pout-Pin

NF (dB)

N/A

VSWR

1.8

"Voltage (VDC)"

5

"Current (mA)"

450

Connection Type

SMA-Female
