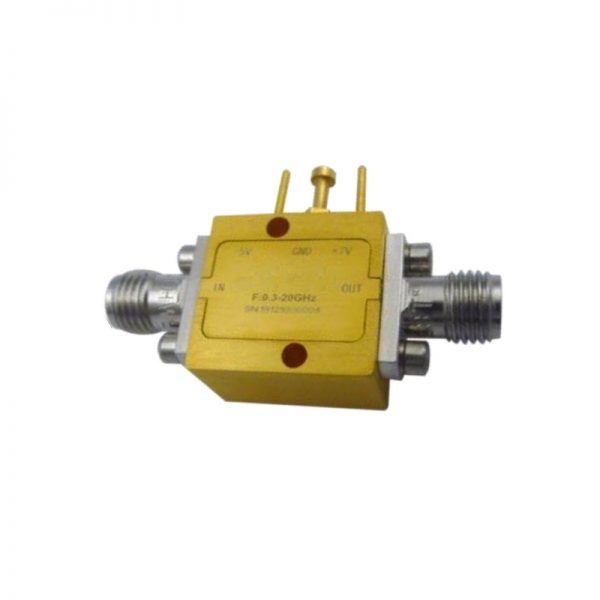

Ultra Wide Band Low Noise Amplifier From 0.3GHz to 20GHz With a Nominal 12dB Gain NF 3dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.3GHz to 20GHz With a Nominal 12dB Gain NF 3dB SMA Connectors

0 out of 5

• Gain: 14dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +13dBm Typical
• 50 Ohm Matched

SKU: OLNA200302000A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 14dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +13dBm Typical
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

053-OLNA200302000A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.3

Max. Pass Band Frequency (GHz)

20

Gain (dB)

12

NF (dB)

3

P1dB (dBm)

12

IP3 (dBm)

23

VSWR

1.5

"Voltage (VDC)"

7

"Current (mA)"

70

Connection Type

SMA
