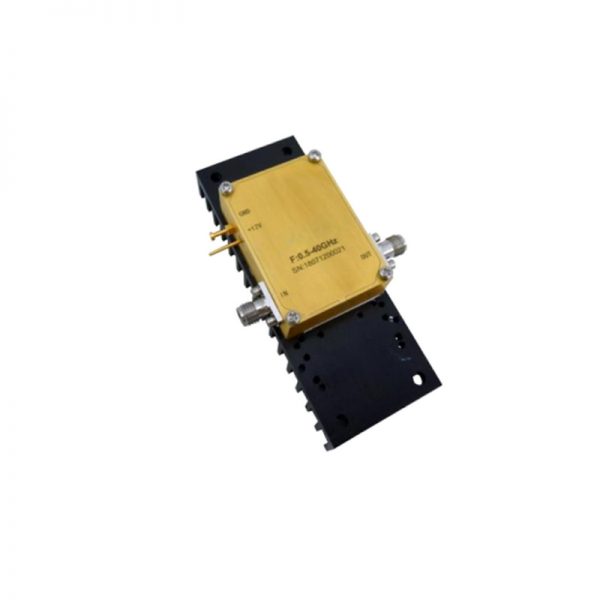

Ultra Wide Band Low Noise Amplifier From 0.5GHz to 40GHz With a Nominal 45dB Gain NF 4dB 2.92mm Connectors

Ultra Wide Band Low Noise Amplifier From 0.5GHz to 40GHz With a Nominal 45dB Gain NF 4dB 2.92mm Connectors

0 out of 5

• Gain: 43dB Typical
• Noise Figure: 4.0dB Typical
• P1dB Output Power: +18dBmTypical
• Supply Voltage: +12V @ 550mA
• 50 Ohm Matched

SKU: OLNA600504000B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 43dB Typical
• Noise Figure: 4.0dB Typical
• P1dB Output Power: +18dBmTypical
• Supply Voltage: +12V @ 550mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

148-OLNA600504000B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.5

Max. Pass Band Frequency (GHz)

40

Gain (dB)

45

NF (dB)

4

P1dB (dBm)

18

IP3 (dBm)

27

VSWR

1.6

"Voltage (VDC)"

12

"Current (mA)"

550

Connection Type

2.92mm
