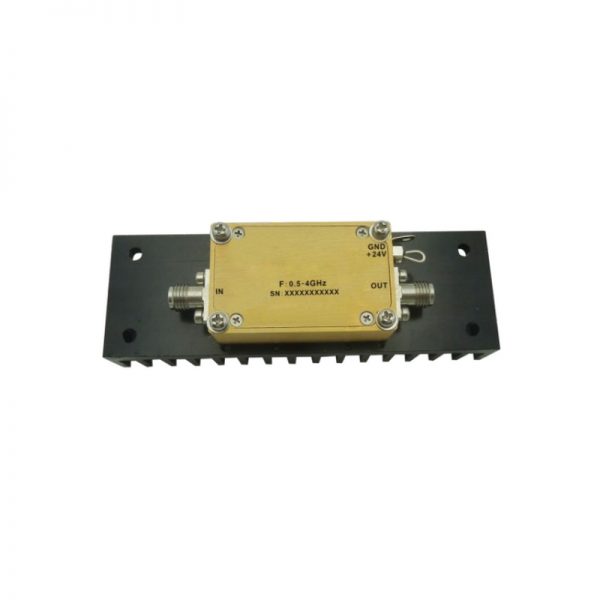

Ultra Wide Band Low Noise Amplifier From 0.5GHz to 4GHz With a Nominal 29dB Gain NF 1.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.5GHz to 4GHz With a Nominal 29dB Gain NF 1.5dB SMA Connectors

• Gain: 32dB Typical
• Noise Figure: 0.8dB Typical
• P1dB Output Power: +20dBm Typical
• Supply Voltage: +24V

SKU: OLNA100500400C Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 32dB Typical
• Noise Figure: 0.8dB Typical
• P1dB Output Power: +20dBm Typical
• Supply Voltage: +24V



Data Sheet ( Download Datasheet PDF )

225-OLNA100500400C



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.5

Max. Pass Band Frequency (GHz)

4

Gain (dB)

29

NF (dB)

1.5

P1dB (dBm)

16

IP3 (dBm)

26

VSWR

3

"Voltage (VDC)"

25

"Current (mA)"

160

Connection Type

SMA
