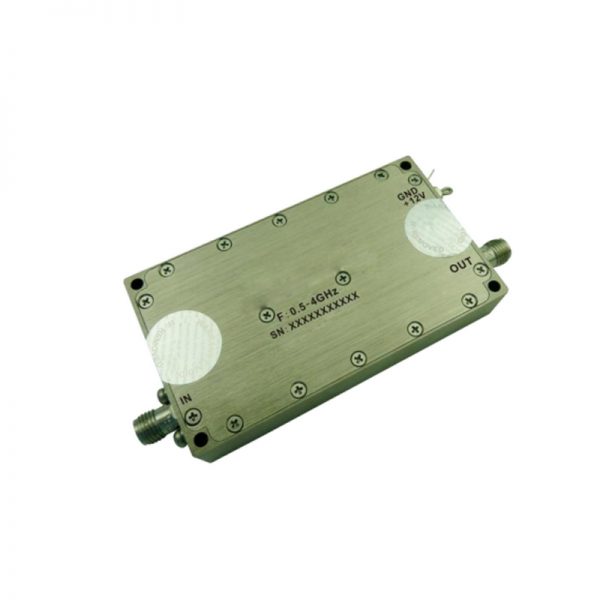

Ultra Wide Band Low Noise Amplifier From 0.5GHz to 4GHz With a Nominal 45dB Gain NF 0.8dB SMA-Female Connectors

Ultra Wide Band Low Noise Amplifier From 0.5GHz to 4GHz With a Nominal 45dB Gain NF 0.8dB SMA-Female Connectors

• Gain: 45dB Typical
• Noise Figure: 0.8dB Typical
• Output P1dB : +27dBmTypical
• Supply Voltage: +12V

SKU: OLNA100500400B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 45dB Typical
• Noise Figure: 0.8dB Typical
• Output P1dB : +27dBmTypical
• Supply Voltage: +12V



Data Sheet ( Download Datasheet PDF )

192-OLNA100500400B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.5

Max. Pass Band Frequency (GHz)

4

Gain (dB)

45

NF (dB)

0.8

P1dB (dBm)

27

IP3 (dBm)

32

VSWR

2

"Voltage (VDC)"

12

"Current (mA)"

300

Connection Type

SMA-Female
