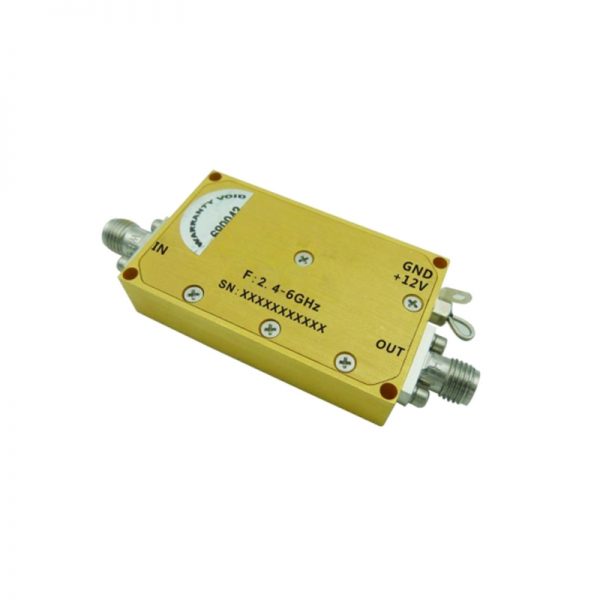

Ultra Wide Band Low Noise Amplifier From 0.5GHz to 6GHz With a Nominal 38dB Gain NF 2.8dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.5GHz to 6GHz With a Nominal 38dB Gain NF 2.8dB SMA Connectors

0 out of 5

• Gain:42dB Typical
• Noise Figure: 2.2dB Typical
• P1dB Output Power: +20dBm Typical
• Functional Bandwidth : 0.5GHz–6GHz
• Supply Voltage: +12V
• 50 Ohm Matched Input / Output

SKU: OLNA302400600A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain:42dB Typical
• Noise Figure: 2.2dB Typical
• P1dB Output Power: +20dBm Typical
• Functional Bandwidth : 0.5GHz–6GHz
• Supply Voltage: +12V
• 50 Ohm Matched Input / Output



Data Sheet ( Download Datasheet PDF )

072-OLNA302400600A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.5

Max. Pass Band Frequency (GHz)

6

Gain (dB)

38

NF (dB)

2.8

P1dB (dBm)

20

IP3 (dBm)

30

VSWR

1.8

"Voltage (VDC)"

12

"Current (mA)"

280

Connection Type

SMA
