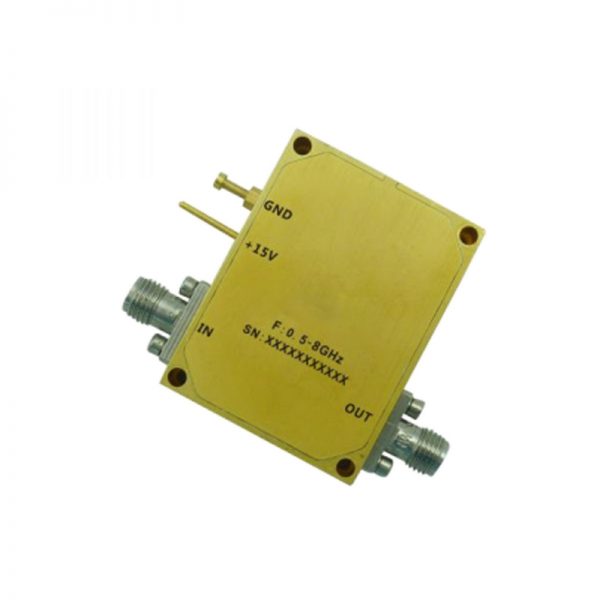

Ultra Wide Band Low Noise Amplifier From 0.5GHz to 8GHz With a Nominal 35dB Gain NF 1.8dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 0.5GHz to 8GHz With a Nominal 35dB Gain NF 1.8dB SMA Connectors

0 out of 5

• Gain: 37dB Typical
• Noise Figure: 1.5dB Typical
• P1dB Output Power: +28dBm Typical
• Supply Voltage: +15V @ 480mA
• 50 Ohm Matched

SKU: OLNA402000800C Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 37dB Typical
• Noise Figure: 1.5dB Typical
• P1dB Output Power: +28dBm Typical
• Supply Voltage: +15V @ 480mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

055-OLNA402000800C



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

0.5

Max. Pass Band Frequency (GHz)

8

Gain (dB)

35

NF (dB)

1.8

P1dB (dBm)

26.5

IP3 (dBm)

40

VSWR

2.6

"Voltage (VDC)"

15

"Current (mA)"

480

Connection Type

SMA
