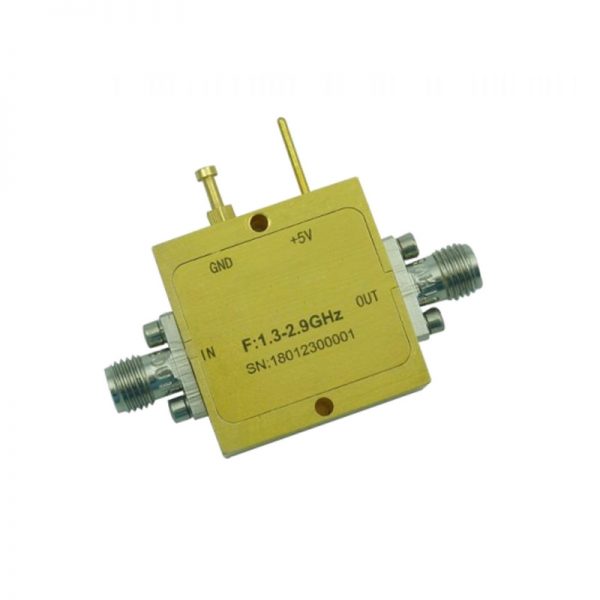

Ultra Wide Band Low Noise Amplifier From 1.3GHz to 2.9GHz With a Nominal 24dB Gain NF 1.3dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 1.3GHz to 2.9GHz With a Nominal 24dB Gain NF 1.3dB SMA Connectors

• Gain: 25 dB Typical
• Noise Figure: 1.2dB Typical
• P1dB Output Power: +20dBmTypical
• Supply Voltage: +5V @ 150mA
• 50 Ohm Matched Input / Output
• Size: 0.98” x 0.98” x 0.394”

SKU: OLNA101300290B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 25 dB Typical
• Noise Figure: 1.2dB Typical
• P1dB Output Power: +20dBmTypical
• Supply Voltage: +5V @ 150mA
• 50 Ohm Matched Input / Output
• Size: 0.98” x 0.98” x 0.394”



Data Sheet ( Download Datasheet PDF )

128-OLNA101300290B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

1.3

Max. Pass Band Frequency (GHz)

2.9

Gain (dB)

24

NF (dB)

1.3

P1dB (dBm)

21

IP3 (dBm)

22

VSWR

1.8

"Voltage (VDC)"

5

"Current (mA)"

150

Connection Type

SMA
