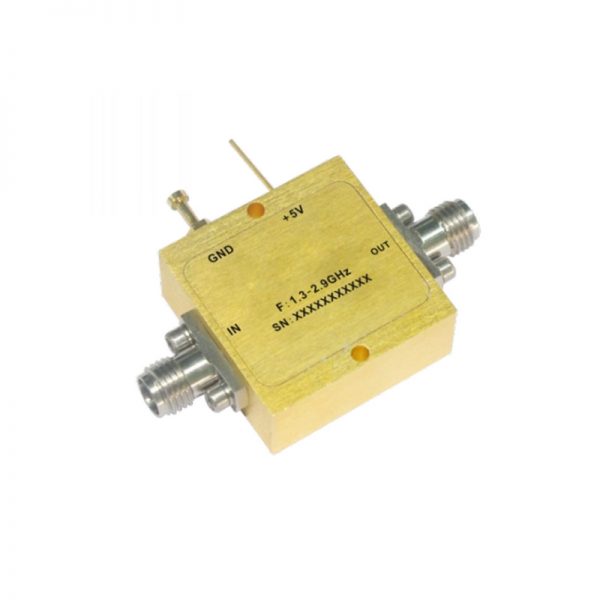

Ultra Wide Band Low Noise Amplifier From 1.3GHz to 2.9GHz With a Nominal 26dB Gain NF 1.2dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 1.3GHz to 2.9GHz With a Nominal 26dB Gain NF 1.2dB SMA Connectors

0 out of 5

• Gain: 30 dB Typical
• Noise Figure: 1.0dB Typical
• P1dB Output Power: +25dBm Typical
• Supply Voltage: +5V @ 150mA
• 50 Ohm Matched

SKU: OLNA101300290A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 30 dB Typical
• Noise Figure: 1.0dB Typical
• P1dB Output Power: +25dBm Typical
• Supply Voltage: +5V @ 150mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

092-OLNA101300290A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

1.3

Max. Pass Band Frequency (GHz)

2.9

Gain (dB)

26

NF (dB)

1.2

P1dB (dBm)

25

IP3 (dBm)

39

VSWR

1.8

"Voltage (VDC)"

5

"Current (mA)"

150

Connection Type

SMA
