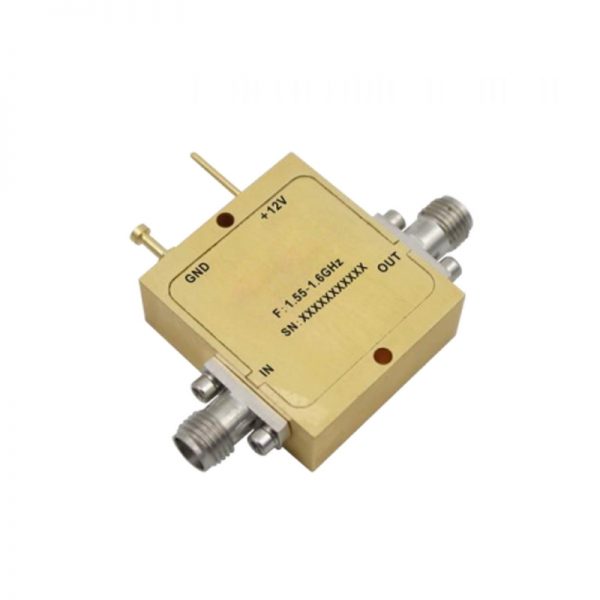

Ultra Wide Band Low Noise Amplifier From 1.55GHz to 1.6GHz With a Nominal 38dB Gain NF 1.2dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 1.55GHz to 1.6GHz With a Nominal 38dB Gain NF 1.2dB SMA Connectors

0 out of 5

• Gain: 36dB Typical
• Noise Figure: 1.2dB Typical
• P1dB Output Power: +20dB m Typical
• Supply Voltage: +12V @ 160mA
• 50 Ohm Matched Input / Output
• Size: 0.99” x 1.10” x 0.39”

SKU: OLNA101550160A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 36dB Typical
• Noise Figure: 1.2dB Typical
• P1dB Output Power: +20dB m Typical
• Supply Voltage: +12V @ 160mA
• 50 Ohm Matched Input / Output
• Size: 0.99” x 1.10” x 0.39”



Data Sheet ( Download Datasheet PDF )

131-OLNA101550160A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

1.55

Max. Pass Band Frequency (GHz)

1.6

Gain (dB)

38

NF (dB)

1.2

P1dB (dBm)

21

IP3 (dBm)

36

VSWR

1.3

"Voltage (VDC)"

13

"Current (mA)"

160

Connection Type

SMA
