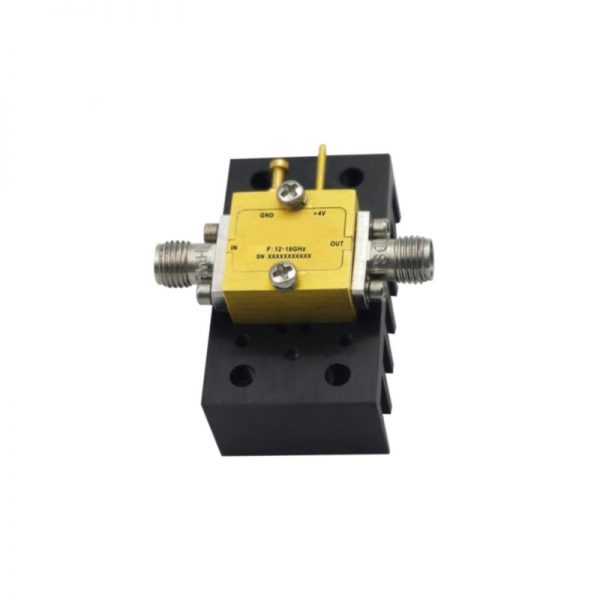

Ultra Wide Band Low Noise Amplifier From 12GHz to 18GHz With a Nominal 19dB Gain NF 1.8dB SMA-Female Connectors

Ultra Wide Band Low Noise Amplifier From 12GHz to 18GHz With a Nominal 19dB Gain NF 1.8dB SMA-Female Connectors

0 out of 5

• Gain:19dB Typical
• Noise Figure:1.8dB Typical
• P1dB Output Power: +15dBm Typical
• Supply Voltage: +4V @90mA
• 50 Ohm Matched Input / Output

SKU: OLNA212001800A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain:19dB Typical
• Noise Figure:1.8dB Typical
• P1dB Output Power: +15dBm Typical
• Supply Voltage: +4V @90mA
• 50 Ohm Matched Input / Output



Data Sheet ( Download Datasheet PDF )

040-OLNA212001800A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

12

Max. Pass Band Frequency (GHz)

18

Gain (dB)

19

NF (dB)

1.8

P1dB (dBm)

16

IP3 (dBm)

24

VSWR

1.8

"Voltage (VDC)"

4.5

"Current (mA)"

90

Connection Type

SMA-Female
