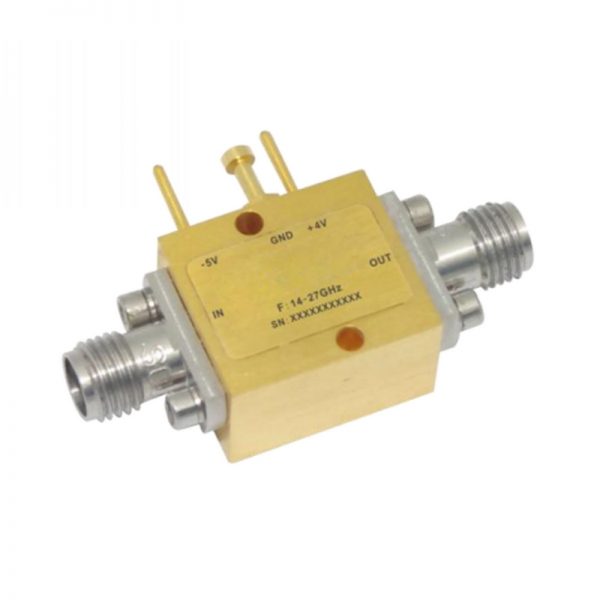

Ultra Wide Band Low Noise Amplifier From 14GHz to 27GHz With a Nominal 18dB Gain NF 3dB 2.92-Female Connectors

Ultra Wide Band Low Noise Amplifier From 14GHz to 27GHz With a Nominal 18dB Gain NF 3dB 2.92-Female Connectors

• Gain: 19dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +17dB m Typical
• Supply Voltage: +4V @ 110mA
• 50 Ohm Matched Input / Output

SKU: OLNA214002700C Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 19dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +17dB m Typical
• Supply Voltage: +4V @ 110mA
• 50 Ohm Matched Input / Output



Data Sheet ( Download Datasheet PDF )

076-OLNA214002700C



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

14

Max. Pass Band Frequency (GHz)

27

Gain (dB)

18

NF (dB)

3

P1dB (dBm)

17

IP3 (dBm)

26

VSWR

1.8

"Voltage (VDC)"

4

"Current (mA)"

110

Connection Type

2.92-Female
