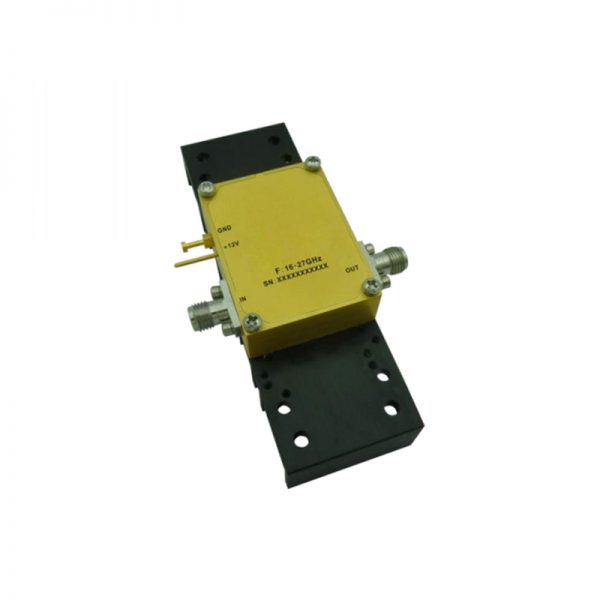

Ultra Wide Band Low Noise Amplifier From 16GHz to 27GHz With a Nominal 32dB Gain NF 2.2dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 16GHz to 27GHz With a Nominal 32dB Gain NF 2.2dB SMA Connectors

0 out of 5

• Gain: 31dBtypical
• Noise Figure: 2.0dB typical
• High P1dB: +21dBmtypical
• Supply Voltage: +12V /160mA

SKU: OLNA216002700A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 31dBtypical
• Noise Figure: 2.0dB typical
• High P1dB: +21dBmtypical
• Supply Voltage: +12V /160mA



Data Sheet ( Download Datasheet PDF )

078-OLNA216002700A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

16

Max. Pass Band Frequency (GHz)

27

Gain (dB)

32

NF (dB)

2.2

P1dB (dBm)

21

IP3 (dBm)

25

VSWR

1.8

"Voltage (VDC)"

15

"Current (mA)"

160

Connection Type

SMA
