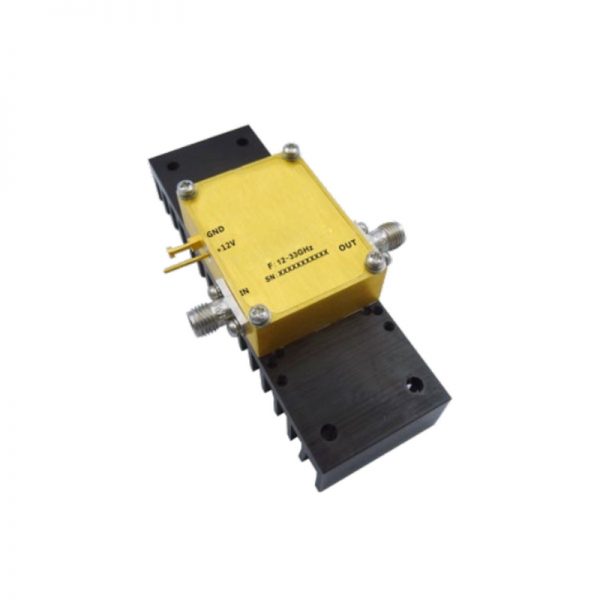

Ultra Wide Band Low Noise Amplifier From 16GHz to 33GHz With a Nominal 30dB Gain NF 2.5dB 2.92mm Connectors

Ultra Wide Band Low Noise Amplifier From 16GHz to 33GHz With a Nominal 30dB Gain NF 2.5dB 2.92mm Connectors

0 out of 5

• Gain: 32dB Typical
• Noise Figure: 2.5dB Typical
• Output P1dB: 21dBm Typical
• Supply Voltage: +12V @300mA
• 50 Ohm Matched

SKU: OLNA316003300A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 32dB Typical
• Noise Figure: 2.5dB Typical
• Output P1dB: 21dBm Typical
• Supply Voltage: +12V @300mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

084-OLNA316003300A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

16

Max. Pass Band Frequency (GHz)

33

Gain (dB)

30

NF (dB)

2.5

P1dB (dBm)

24

IP3 (dBm)

33

VSWR

2

"Voltage (VDC)"

12

"Current (mA)"

400

Connection Type

2.92mm
