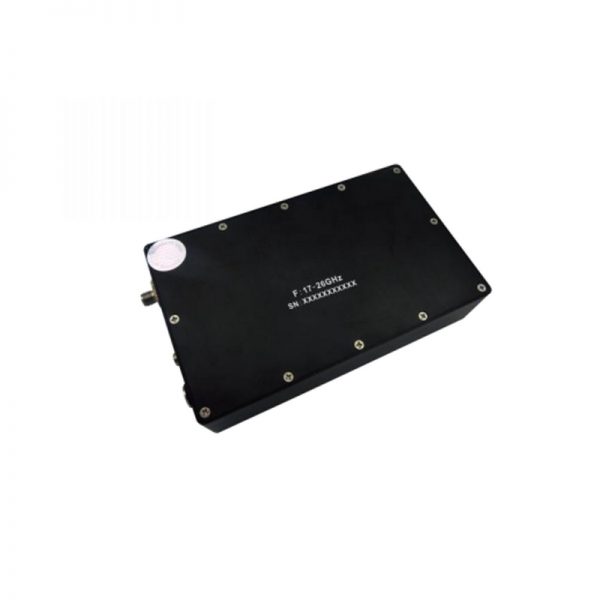

Ultra Wide Band Low Noise Amplifier From 17.2GHz to 26GHz With a Nominal 52dB Gain NF 2.5dB SMA-Female Connectors

Ultra Wide Band Low Noise Amplifier From 17.2GHz to 26GHz With a Nominal 52dB Gain NF 2.5dB SMA-Female Connectors

0 out of 5

• Gain: 53dB Typical
• Noise Figure: 2.2dB Typical
• P1dB Output Power: +18dBmTypical
• Supply Voltage: +15V @ 250mA
• 50 Ohm Matched

SKU: OLNA317202120S Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 53dB Typical
• Noise Figure: 2.2dB Typical
• P1dB Output Power: +18dBmTypical
• Supply Voltage: +15V @ 250mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

188-OLNA317202120S



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

17.2

Max. Pass Band Frequency (GHz)

26

Gain (dB)

52

NF (dB)

2.5

P1dB (dBm)

18

IP3 (dBm)

24

VSWR

2

"Voltage (VDC)"

15

"Current (mA)"

250

Connection Type

SMA-Female
