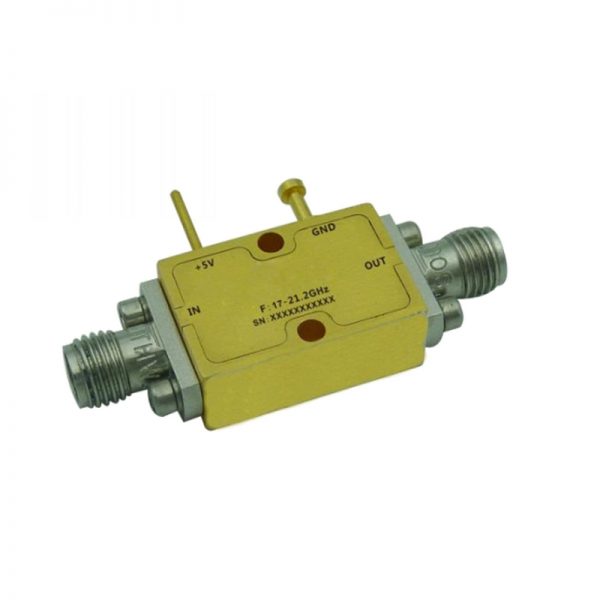

Ultra Wide Band Low Noise Amplifier From 17GHz to 21.2GHz With a Nominal 35dB Gain NF 2dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 17GHz to 21.2GHz With a Nominal 35dB Gain NF 2dB SMA Connectors

0 out of 5

• Gain: 36dBtypical
• Noise Figure: 2.2dB typical
• P1dB: +10dBmtypical
• Supply Voltage: +5V @ 135mA
• 50 Ohm Matched

SKU: OLNA317002120A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 36dBtypical
• Noise Figure: 2.2dB typical
• P1dB: +10dBmtypical
• Supply Voltage: +5V @ 135mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

142-OLNA317002120A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

17

Max. Pass Band Frequency (GHz)

21.2

Gain (dB)

35

NF (dB)

2

P1dB (dBm)

12

IP3 (dBm)

24

VSWR

1.8

"Voltage (VDC)"

5

"Current (mA)"

135

Connection Type

SMA
