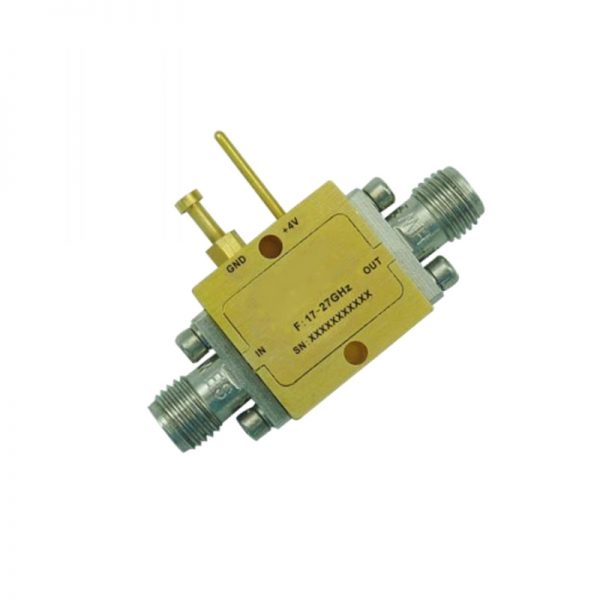

Ultra Wide Band Low Noise Amplifier From 17GHz to 27GHz With a Nominal 25dB Gain NF 2.8dB 2.92mm Connectors

Ultra Wide Band Low Noise Amplifier From 17GHz to 27GHz With a Nominal 25dB Gain NF 2.8dB 2.92mm Connectors

0 out of 5

• Gain: 24dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +12dBmTypical
• Supply Voltage: +4V @ 75mA
• 50 Ohm Matched

SKU: OLNA217002700A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 24dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +12dBmTypical
• Supply Voltage: +4V @ 75mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

079-OLNA217002700A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

17

Max. Pass Band Frequency (GHz)

27

Gain (dB)

25

NF (dB)

2.8

P1dB (dBm)

12

IP3 (dBm)

20

VSWR

1.8

"Voltage (VDC)"

'+4V

"Current (mA)"

75

Connection Type

2.92mm
