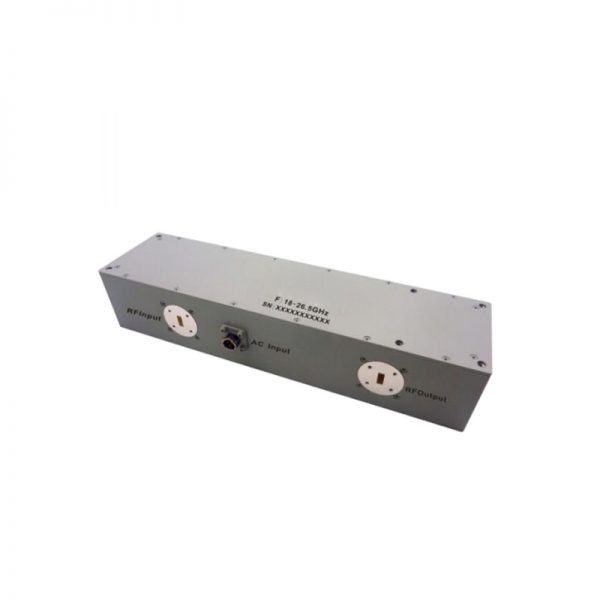

Ultra Wide Band Low Noise Amplifier From 18GHz to 26.5GHz With a Nominal 53dB Gain NF 2.2dB WR42 Connectors

Ultra Wide Band Low Noise Amplifier From 18GHz to 26.5GHz With a Nominal 53dB Gain NF 2.2dB WR42 Connectors

0 out of 5

• Gain: 46dB Typical
• Noise Figure: 2.2dB Typical
• P1dB Output Power: +20dB m Typical
• Convenient AC Power Input.

SKU: OLNA218002650B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 46dB Typical
• Noise Figure: 2.2dB Typical
• P1dB Output Power: +20dB m Typical
• Convenient AC Power Input.



Data Sheet ( Download Datasheet PDF )

198-OLNA218002650B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

18

Max. Pass Band Frequency (GHz)

26.5

Gain (dB)

53

NF (dB)

2.2

P1dB (dBm)

18

IP3 (dBm)

24

VSWR

2

"Voltage (VDC)"

AC110/220

"Current (mA)"

35/18

Connection Type

WR42
