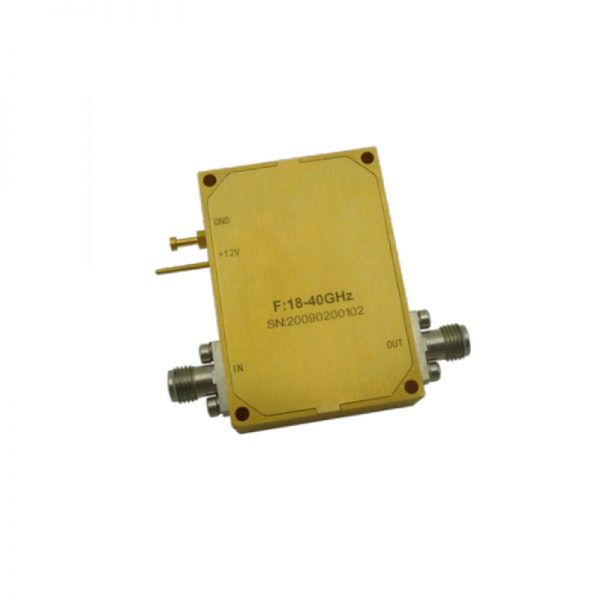

Ultra Wide Band Low Noise Amplifier From 18GHz to 40GHz With a Nominal 40dB Gain NF 5.5dB 2.92mm Connectors

Ultra Wide Band Low Noise Amplifier From 18GHz to 40GHz With a Nominal 40dB Gain NF 5.5dB 2.92mm Connectors

0 out of 5

• Gain: 40dB Typical
• Noise Figure: 5.5dB Typical
• P1dB Output Power: +20dBm Typical
• Supply Voltage: +12V @ 500mA
• 50 Ohm Matched Input / Output

SKU: OLNA718004000B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 40dB Typical
• Noise Figure: 5.5dB Typical
• P1dB Output Power: +20dBm Typical
• Supply Voltage: +12V @ 500mA
• 50 Ohm Matched Input / Output



Data Sheet ( Download Datasheet PDF )

110-OLNA718004000B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

18

Max. Pass Band Frequency (GHz)

40

Gain (dB)

40

NF (dB)

5.5

P1dB (dBm)

20

IP3 (dBm)

30

VSWR

2

"Voltage (VDC)"

12

"Current (mA)"

500

Connection Type

2.92mm
