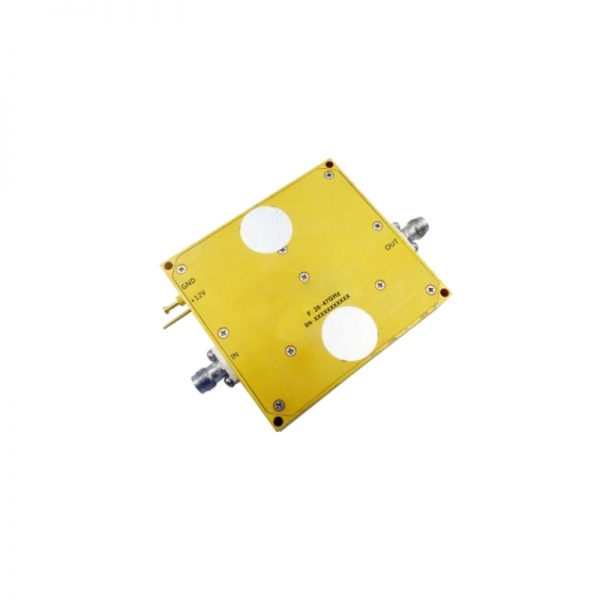

Ultra Wide Band Low Noise Amplifier From 18GHz to 42GHz With a Nominal 15dB Gain NF 3dB 2.92mm Connectors

Ultra Wide Band Low Noise Amplifier From 18GHz to 42GHz With a Nominal 15dB Gain NF 3dB 2.92mm Connectors

0 out of 5

• Gain: 15dB Typical
• Noise Figure: 3.0dB Typical
• P1dB Output Power: +13dBmTypical
• Supply Voltage: +5V @ 85mA
• 50 Ohm Matched

SKU: OLNA418004000A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 15dB Typical
• Noise Figure: 3.0dB Typical
• P1dB Output Power: +13dBmTypical
• Supply Voltage: +5V @ 85mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

200-OLNA418004000A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

18

Max. Pass Band Frequency (GHz)

42

Gain (dB)

15

NF (dB)

3

P1dB (dBm)

13

IP3 (dBm)

25

VSWR

1.8

"Voltage (VDC)"

5

"Current (mA)"

85

Connection Type

2.92mm
