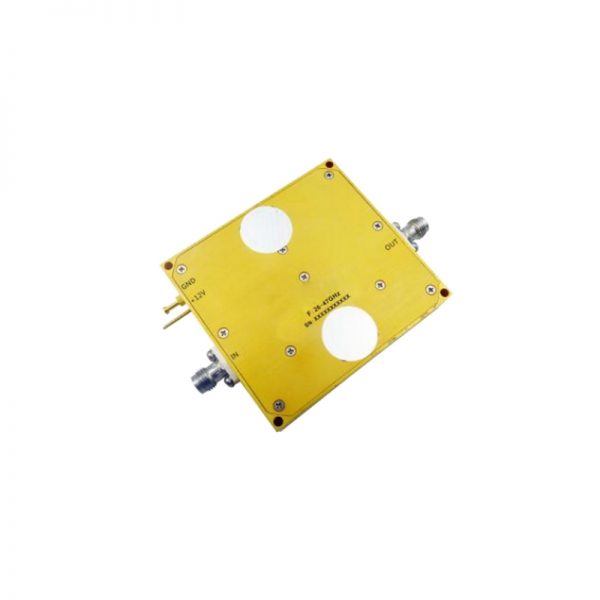

Ultra Wide Band Low Noise Amplifier From 18GHz to 47GHz With a Nominal 70dB Gain NF 5.5dB 2.4mm Connectors

Ultra Wide Band Low Noise Amplifier From 18GHz to 47GHz With a Nominal 70dB Gain NF 5.5dB 2.4mm Connectors

0 out of 5

• Gain: 70dB Typical
• Noise Figure: 5.0dB Typical
• P1dB Output Power: +10dBm Typical
• Supply Voltage: +12V @ 1000mA
• 50 Ohm Matched Input / Output

SKU: OLNA626004700A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 70dB Typical
• Noise Figure: 5.0dB Typical
• P1dB Output Power: +10dBm Typical
• Supply Voltage: +12V @ 1000mA
• 50 Ohm Matched Input / Output



Data Sheet ( Download Datasheet PDF )

199-OLNA626004700A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

18

Max. Pass Band Frequency (GHz)

47

Gain (dB)

70

NF (dB)

5.5

P1dB (dBm)

10

IP3 (dBm)

20

VSWR

2.5

"Voltage (VDC)"

12

"Current (mA)"

1000

Connection Type

2.4mm
