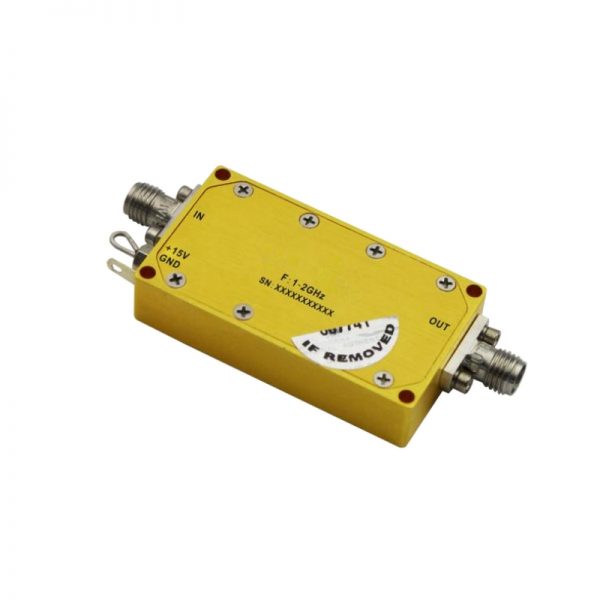

Ultra Wide Band Low Noise Amplifier From 1GHz to 2GHz With a Nominal 22dB Gain NF 2.7dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 1GHz to 2GHz With a Nominal 22dB Gain NF 2.7dB SMA Connectors

0 out of 5

• Gain: 22 dB Typical
• Noise Figure: 2.7dB Typical
• P1dB Output Power: +24dBmfull band
• Supply Voltage: +15V @ 250mA
• 50 Ohm Matched Input / Output
• Size:1.772” x0.984” x0.394”

SKU: OLNA401000200A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 22 dB Typical
• Noise Figure: 2.7dB Typical
• P1dB Output Power: +24dBmfull band
• Supply Voltage: +15V @ 250mA
• 50 Ohm Matched Input / Output
• Size:1.772” x0.984” x0.394”



Data Sheet ( Download Datasheet PDF )

032-OLNA401000200A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

1

Max. Pass Band Frequency (GHz)

2

Gain (dB)

22

NF (dB)

2.7

P1dB (dBm)

27

IP3 (dBm)

35

VSWR

1.5

"Voltage (VDC)"

15

"Current (mA)"

250

Connection Type

SMA
