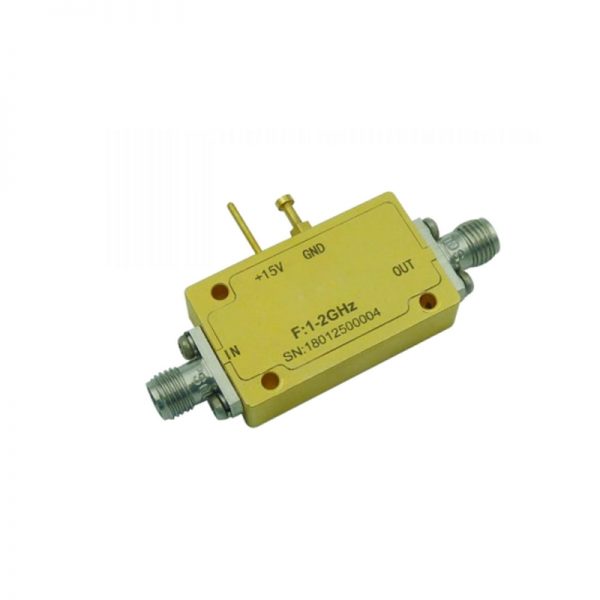

Ultra Wide Band Low Noise Amplifier From 1GHz to 2GHz With a Nominal 60dB Gain NF 0.7dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 1GHz to 2GHz With a Nominal 60dB Gain NF 0.7dB SMA Connectors

0 out of 5

• Gain: 60dB Typical
• Noise Figure: 0.7dB Typical
• P1dB Output Power: +19dBm Typical
• Supply Voltage: +15V

SKU: OLNA101000200B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 60dB Typical
• Noise Figure: 0.7dB Typical
• P1dB Output Power: +19dBm Typical
• Supply Voltage: +15V



Data Sheet ( Download Datasheet PDF )

153-OLNA101000200B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

1

Max. Pass Band Frequency (GHz)

2

Gain (dB)

60

NF (dB)

0.7

P1dB (dBm)

19

IP3 (dBm)

24

VSWR

1.8

"Voltage (VDC)"

15

"Current (mA)"

165

Connection Type

SMA
