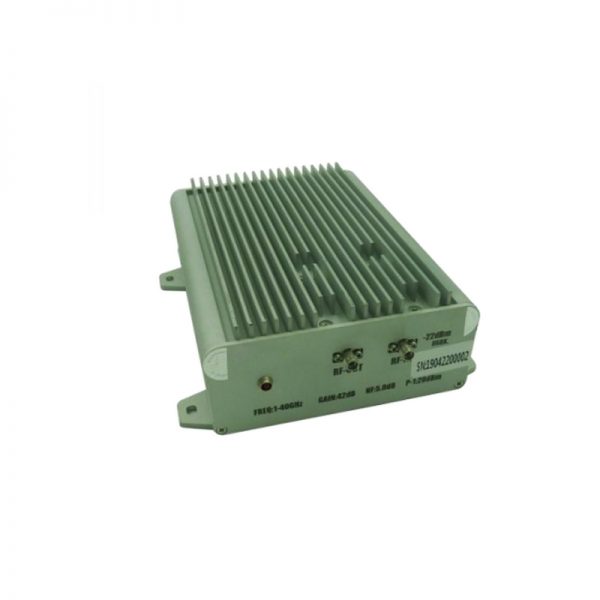

Ultra Wide Band Low Noise Amplifier From 1GHz to 40GHz With a Nominal 43dB Gain NF 5.5dB 2.92 Connectors

Ultra Wide Band Low Noise Amplifier From 1GHz to 40GHz With a Nominal 43dB Gain NF 5.5dB 2.92 Connectors

0 out of 5

• High Output Power18dBmTypical.
• High peak to average handling capability.
• High linearity and low noise figure.
• Convenient AC Power Input. (AC 110V/220V)
• Integrated Heat Sink and Fan.

SKU: OACLA01004000A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• High Output Power18dBmTypical.
• High peak to average handling capability.
• High linearity and low noise figure.
• Convenient AC Power Input. (AC 110V/220V)
• Integrated Heat Sink and Fan.



Data Sheet ( Download Datasheet PDF )

190-OACLA01004000A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

1

Max. Pass Band Frequency (GHz)

40

Gain (dB)

43

NF (dB)

5.5

P1dB (dBm)

18

IP3 (dBm)

25

VSWR

2.5

"Voltage (VDC)"

110-220V

"Current (mA)"

500

Connection Type

2.92
