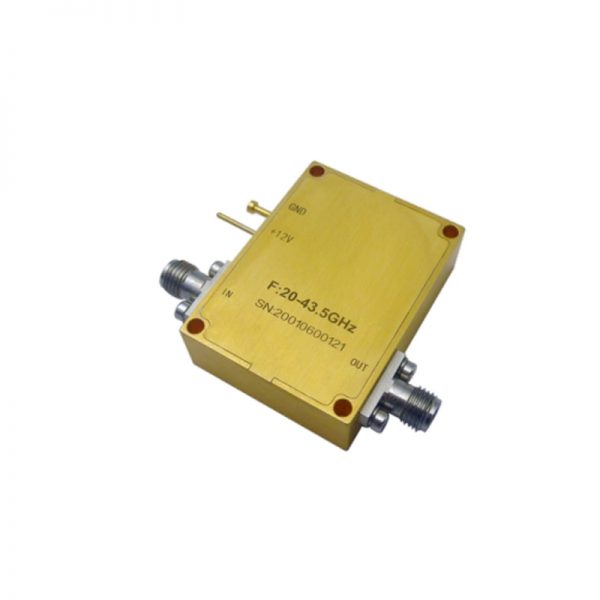

Ultra Wide Band Low Noise Amplifier From 20GHz to 43.5GHz With a Nominal 45dB Gain NF 2.5dB 2.92mm Connectors

Ultra Wide Band Low Noise Amplifier From 20GHz to 43.5GHz With a Nominal 45dB Gain NF 2.5dB 2.92mm Connectors

0 out of 5

• Gain:45dB Typical
• Noise Figure: 3.0dB Typical
• P1dB Output Power: +22dBm Typical
• Supply Voltage: +12V / 280mA

SKU: OLNA420004350B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain:45dB Typical
• Noise Figure: 3.0dB Typical
• P1dB Output Power: +22dBm Typical
• Supply Voltage: +12V / 280mA



Data Sheet ( Download Datasheet PDF )

100-OLNA420004350B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

20

Max. Pass Band Frequency (GHz)

43.5

Gain (dB)

45

NF (dB)

2.5

P1dB (dBm)

21

IP3 (dBm)

19

VSWR

3

"Voltage (VDC)"

12

"Current (mA)"

150

Connection Type

2.92mm
