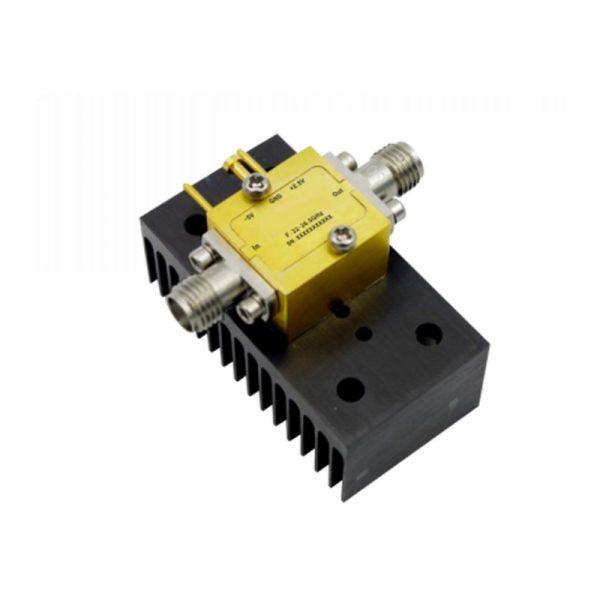

Ultra Wide Band Low Noise Amplifier From 22GHz to 26.5GHz With a Nominal 23dB Gain NF 2.5dB SMA-Female Connectors

Ultra Wide Band Low Noise Amplifier From 22GHz to 26.5GHz With a Nominal 23dB Gain NF 2.5dB SMA-Female Connectors

• Gain:24dBTypical
• Noise Figure:2.5dB Typical
• P1dB Output Power:+12dBm Typical
• Supply Voltage:+3V@55mA
• 50 Ohm Matched Input / Output
• Size: 0.63” x 0.59” x0.41”

SKU: OLNA322002650B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain:24dBTypical
• Noise Figure:2.5dB Typical
• P1dB Output Power:+12dBm Typical
• Supply Voltage:+3V@55mA
• 50 Ohm Matched Input / Output
• Size: 0.63” x 0.59” x0.41”



Data Sheet ( Download Datasheet PDF )

068-OLNA322002650B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

22

Max. Pass Band Frequency (GHz)

26.5

Gain (dB)

23

NF (dB)

2.5

P1dB (dBm)

12

IP3 (dBm)

20

VSWR

1.5

"Voltage (VDC)"

'+3V

"Current (mA)"

55

Connection Type

SMA-Female
