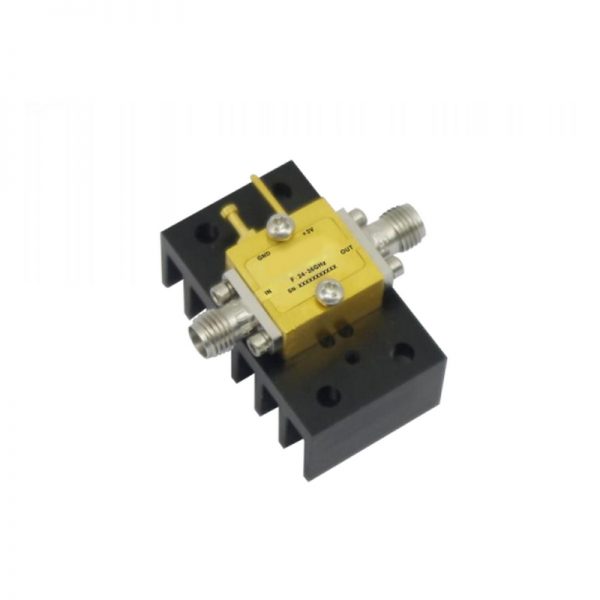

Ultra Wide Band Low Noise Amplifier From 24GHz to 36GHz With a Nominal 19dB Gain NF 2.5dB 2.92mm Connectors

Ultra Wide Band Low Noise Amplifier From 24GHz to 36GHz With a Nominal 19dB Gain NF 2.5dB 2.92mm Connectors

0 out of 5

• Gain: 20dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +7dBm Typical
• Supply Voltage: +3V @ 68mA
• 50 Ohm Matched Input / Output
• Size: 0.63” x 0.59” x 0.31”

SKU: OLNA224003600A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 20dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +7dBm Typical
• Supply Voltage: +3V @ 68mA
• 50 Ohm Matched Input / Output
• Size: 0.63” x 0.59” x 0.31”



Data Sheet ( Download Datasheet PDF )

097-OLNA224003600A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

24

Max. Pass Band Frequency (GHz)

36

Gain (dB)

19

NF (dB)

2.5

P1dB (dBm)

7

IP3 (dBm)

19

VSWR

2

"Voltage (VDC)"

3

"Current (mA)"

68

Connection Type

2.92mm
