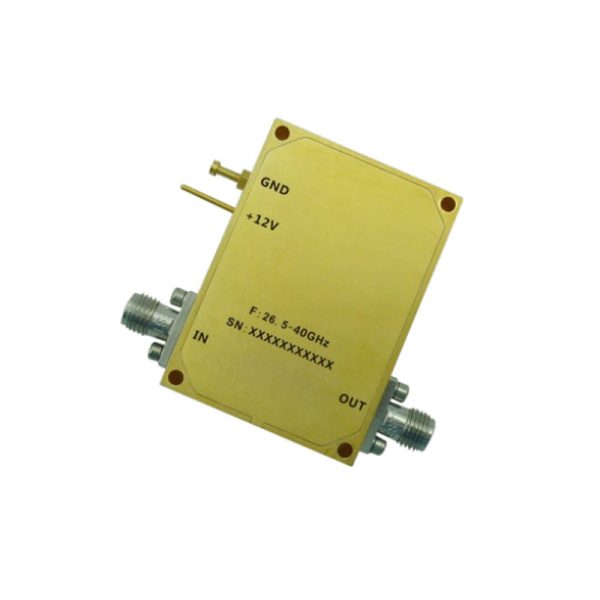

Ultra Wide Band Low Noise Amplifier From 26.5GHz to 40GHz With a Nominal 50dB Gain NF 3dB 2.92mm Connectors

Ultra Wide Band Low Noise Amplifier From 26.5GHz to 40GHz With a Nominal 50dB Gain NF 3dB 2.92mm Connectors

0 out of 5

• Gain: 47dB Typical
• Functional Bandwidth : 24GHz to 40GHz
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +20dBm Typical
• Supply Voltage: +12V @ 270mA
• 50 Ohm Matched

SKU: OLNA426504000A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 47dB Typical
• Functional Bandwidth : 24GHz to 40GHz
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +20dBm Typical
• Supply Voltage: +12V @ 270mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

160-OLNA426504000A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

26.5

Max. Pass Band Frequency (GHz)

40

Gain (dB)

50

NF (dB)

3

P1dB (dBm)

18

IP3 (dBm)

25

VSWR

1.8

"Voltage (VDC)"

12

"Current (mA)"

270

Connection Type

2.92mm
