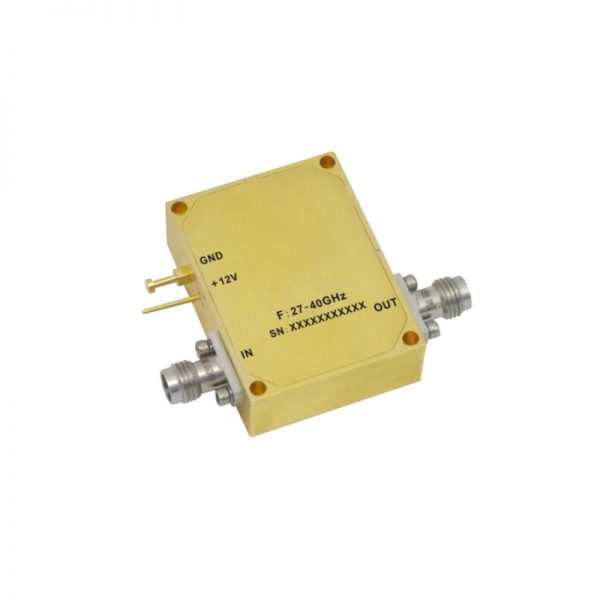

Ultra Wide Band Low Noise Amplifier From 27GHz to 40GHz With a Nominal 37dB Gain NF 2.8dB 2.4mm Connectors

Ultra Wide Band Low Noise Amplifier From 27GHz to 40GHz With a Nominal 37dB Gain NF 2.8dB 2.4mm Connectors

0 out of 5

• Gain: 30dB Typical
• Noise Figure:2.5dB Typical
• P1dB Output Power: +13dBm Typical
• Supply Voltage: +12V @ 110mA
• 50 Ohm Matched Input / Output
• Size: 1.18x 1.58” x 0.47”

SKU: OLNA327004000A Categories: Low Noise Amplifier, Routing

Description

Key Specifications

• Gain: 30dB Typical
• Noise Figure:2.5dB Typical
• P1dB Output Power: +13dBm Typical
• Supply Voltage: +12V @ 110mA
• 50 Ohm Matched Input / Output
• Size: 1.18x 1.58” x 0.47”



Data Sheet ( Download Datasheet PDF )

113-OLNA327004000A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

27

Max. Pass Band Frequency (GHz)

40

Gain (dB)

37

NF (dB)

2.8

P1dB (dBm)

12

IP3 (dBm)

22

VSWR

1.8

"Voltage (VDC)"

12

"Current (mA)"

110

Connection Type

2.4mm
