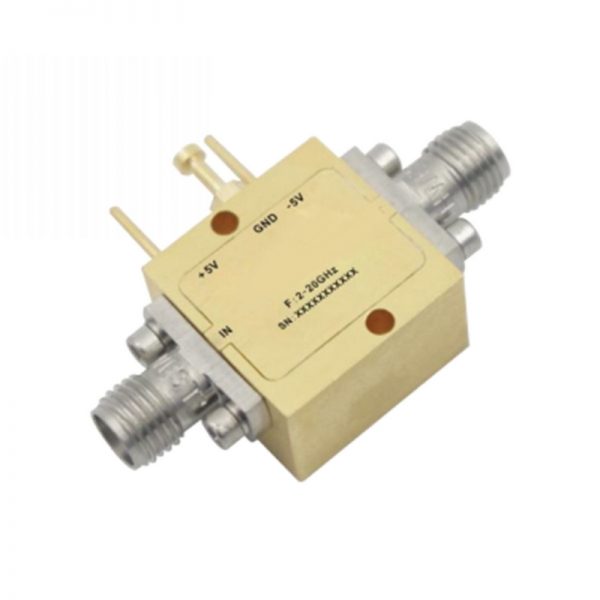

Ultra Wide Band Low Noise Amplifier From 2GHz to 20GHz With a Nominal 14dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 2GHz to 20GHz With a Nominal 14dB Gain NF 2.5dB SMA Connectors

0 out of 5

• Gain: 14dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +16dBm Typical
• Supply Voltage: +5V @ 60mA
• 50 Ohm Matched Input / OutputSize: 0.67” x 0.67” x 0.41”

SKU: OLNA302002000D Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 14dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +16dBm Typical
• Supply Voltage: +5V @ 60mA
• 50 Ohm Matched Input / OutputSize: 0.67” x 0.67” x 0.41”



Data Sheet ( Download Datasheet PDF )

056-OLNA302002000D



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

2

Max. Pass Band Frequency (GHz)

20

Gain (dB)

14

NF (dB)

2.5

P1dB (dBm)

17

IP3 (dBm)

28

VSWR

1.5

"Voltage (VDC)"

5

"Current (mA)"

60

Connection Type

SMA
