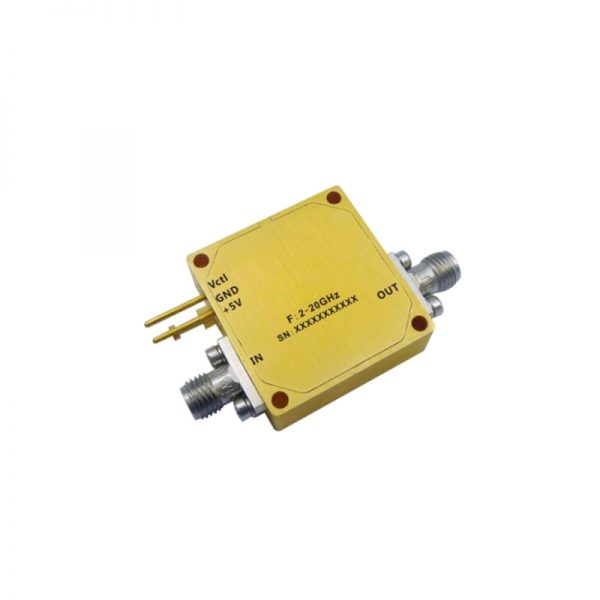

Ultra Wide Band Low Noise Amplifier From 2GHz to 20GHz With a Nominal 17.5dB Gain NF 3dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 2GHz to 20GHz With a Nominal 17.5dB Gain NF 3dB SMA Connectors

• Gain: 18dB Typical
• Noise Figure: 3.0dB Typical
• Output P1dB : +21dBm Typical
• PSAT Output Power: 22dBm
• Supply Voltage: +5V

SKU: OLNA302002000A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 18dB Typical
• Noise Figure: 3.0dB Typical
• Output P1dB : +21dBm Typical
• PSAT Output Power: 22dBm
• Supply Voltage: +5V



Data Sheet ( Download Datasheet PDF )

212-OLNA302002000A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

2

Max. Pass Band Frequency (GHz)

20

Gain (dB)

17.5

NF (dB)

3

P1dB (dBm)

20

IP3 (dBm)

30

VSWR

1.8

"Voltage (VDC)"

5

"Current (mA)"

100

Connection Type

SMA
