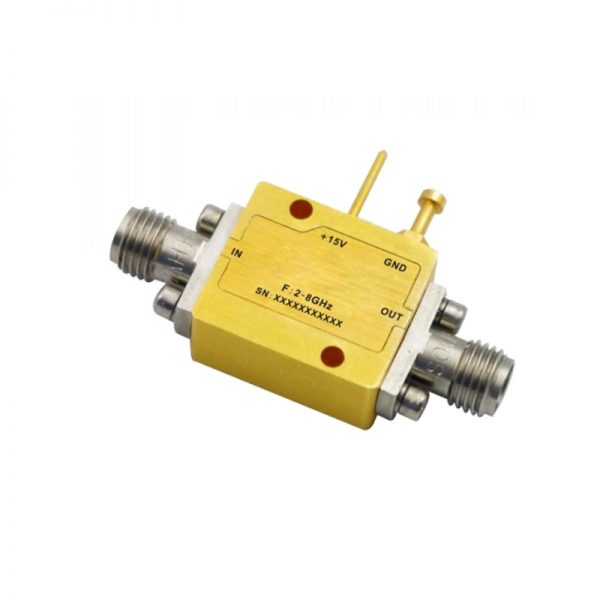

Ultra Wide Band Low Noise Amplifier From 2GHz to 8GHz With a Nominal 32dB Gain NF 0.8dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 2GHz to 8GHz With a Nominal 32dB Gain NF 0.8dB SMA Connectors

0 out of 5

• Gain: 36dB Typical
• Noise Figure: 0.6dB Typical
• Output P1dB: 13dBm Typical
• Supply Voltage: +15V
• 50 Ohm Matched

SKU: OLNA202000800B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 36dB Typical
• Noise Figure: 0.6dB Typical
• Output P1dB: 13dBm Typical
• Supply Voltage: +15V
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

158-OLNA202000800B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

2

Max. Pass Band Frequency (GHz)

8

Gain (dB)

32

NF (dB)

0.8

P1dB (dBm)

10

IP3 (dBm)

18

VSWR

1.6

"Voltage (VDC)"

15.5

"Current (mA)"

100

Connection Type

SMA
