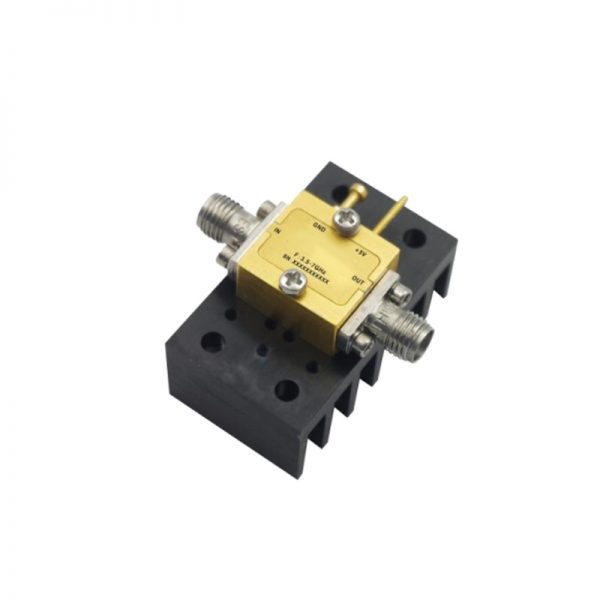

Ultra Wide Band Low Noise Amplifier From 3.5GHz to 7GHz With a Nominal 16.5dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 3.5GHz to 7GHz With a Nominal 16.5dB Gain NF 2.5dB SMA Connectors

0 out of 5

• Gain: 16.5dB Typical
• Noise Figure: 2.0dB Typical
• P1dB Output Power: +16dBm Typical
• Supply Voltage: +5V
• 50 Ohm Matched Input / Output

SKU: OLNA303500700A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 16.5dB Typical
• Noise Figure: 2.0dB Typical
• P1dB Output Power: +16dBm Typical
• Supply Voltage: +5V
• 50 Ohm Matched Input / Output



Data Sheet ( Download Datasheet PDF )

096-OLNA303500700A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

3.5

Max. Pass Band Frequency (GHz)

7

Gain (dB)

16.5

NF (dB)

2.5

P1dB (dBm)

16

IP3 (dBm)

28

VSWR

2

"Voltage (VDC)"

5

"Current (mA)"

60

Connection Type

SMA
