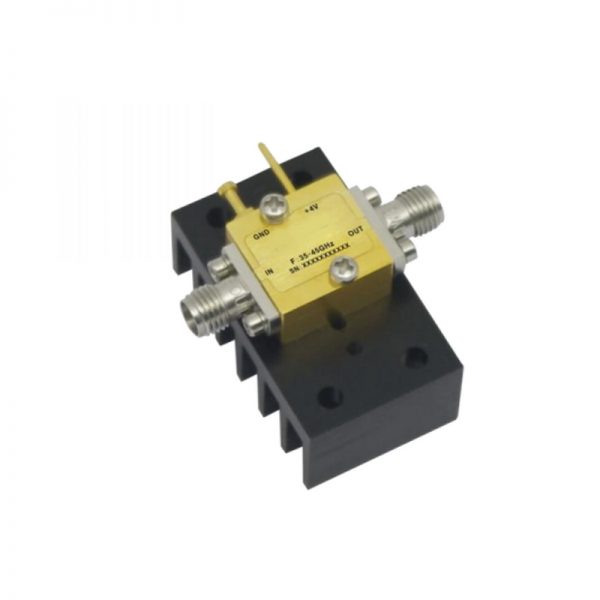

Ultra Wide Band Low Noise Amplifier From 35GHz to 45GHz With a Nominal 14dB Gain NF 3dB 2.92mm Connectors

Ultra Wide Band Low Noise Amplifier From 35GHz to 45GHz With a Nominal 14dB Gain NF 3dB 2.92mm Connectors

0 out of 5

• Gain: 16dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +6dBm Typical
• Supply Voltage: +4 V @ 87mA
• 50 Ohm Matched Input / Output
• Size: 0.63” x 0.59” x 0.31”

SKU: OLNA235004500A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 16dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +6dBm Typical
• Supply Voltage: +4 V @ 87mA
• 50 Ohm Matched Input / Output
• Size: 0.63” x 0.59” x 0.31”



Data Sheet ( Download Datasheet PDF )

102-OLNA235004500A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

35

Max. Pass Band Frequency (GHz)

45

Gain (dB)

14

NF (dB)

3

P1dB (dBm)

6

IP3 (dBm)

15

VSWR

1.5

"Voltage (VDC)"

4

"Current (mA)"

87

Connection Type

2.92mm
