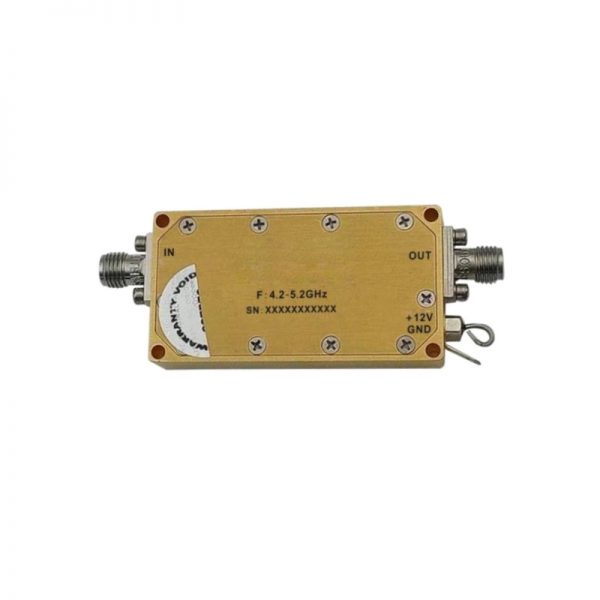

Ultra Wide Band Low Noise Amplifier From 4.2GHz to 5.2GHz With a Nominal 34dB Gain NF 1.2dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 4.2GHz to 5.2GHz With a Nominal 34dB Gain NF 1.2dB SMA Connectors

0 out of 5

• Gain: 34dB Typical
• Noise Figure:1.2dB Typical
• P1dB Output Power:23dBm Typical
• Supply Voltage:12V@350mA
• 50 Ohm Matched Input / Output
• Size:1.89” x1.0” x0.39”s

SKU: OLNA204200520B Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 34dB Typical
• Noise Figure:1.2dB Typical
• P1dB Output Power:23dBm Typical
• Supply Voltage:12V@350mA
• 50 Ohm Matched Input / Output
• Size:1.89” x1.0” x0.39”s



Data Sheet ( Download Datasheet PDF )

035-OLNA204200520B



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

4.2

Max. Pass Band Frequency (GHz)

5.2

Gain (dB)

34

NF (dB)

1.2

P1dB (dBm)

22

IP3 (dBm)

32

VSWR

1

"Voltage (VDC)"

12

"Current (mA)"

350

Connection Type

SMA
