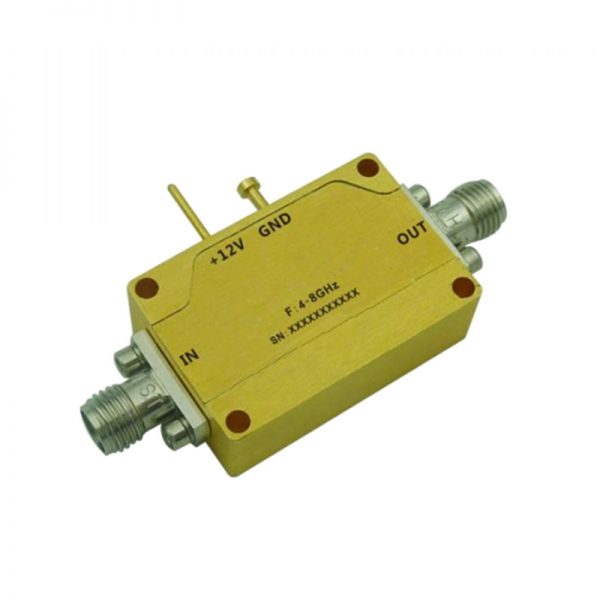

Ultra Wide Band Low Noise Amplifier From 4GHz to 8GHz With a Nominal 24dB Gain NF 1.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 4GHz to 8GHz With a Nominal 24dB Gain NF 1.5dB SMA Connectors

0 out of 5

• Gain: 38dB Typical
• Noise Figure: 0.8dB Typical
• P1dB Output Power: +20dBmfull band
• Supply Voltage: +12V @100mA
• 50 Ohm Matched Input / Output
• Size:1.182” x0.788” x0.394”

SKU: OLNA204000800F Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 38dB Typical
• Noise Figure: 0.8dB Typical
• P1dB Output Power: +20dBmfull band
• Supply Voltage: +12V @100mA
• 50 Ohm Matched Input / Output
• Size:1.182” x0.788” x0.394”



Data Sheet ( Download Datasheet PDF )

127-OLNA204000800F



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

4

Max. Pass Band Frequency (GHz)

8

Gain (dB)

24

NF (dB)

1.5

P1dB (dBm)

15

IP3 (dBm)

27

VSWR

1.4

"Voltage (VDC)"

15

"Current (mA)"

150

Connection Type

SMA
