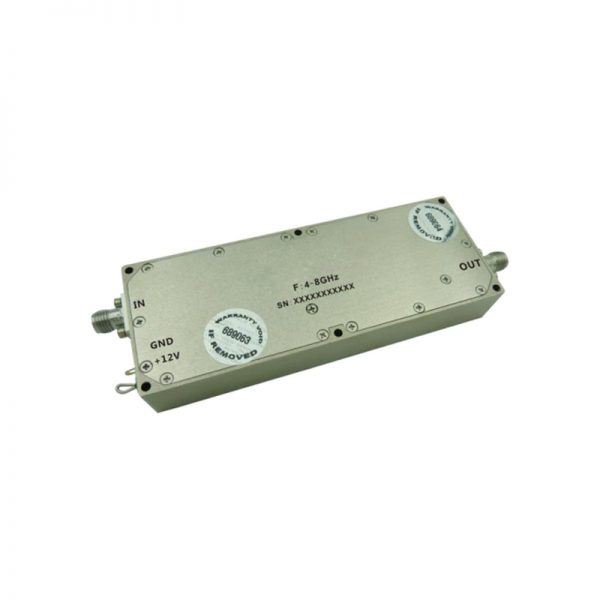

Ultra Wide Band Low Noise Amplifier From 4GHz to 8GHz With a Nominal 46dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 4GHz to 8GHz With a Nominal 46dB Gain NF 2.5dB SMA Connectors

0 out of 5

• Gain: 46dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +27dBmTypical
• Supply Voltage: +12V

SKU: OLNA304000800A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 46dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +27dBmTypical
• Supply Voltage: +12V



Data Sheet ( Download Datasheet PDF )

073-OLNA304000800A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

4

Max. Pass Band Frequency (GHz)

8

Gain (dB)

46

NF (dB)

2.5

P1dB (dBm)

23.5

IP3 (dBm)

34

VSWR

2.5

"Voltage (VDC)"

12

"Current (mA)"

280

Connection Type

SMA
