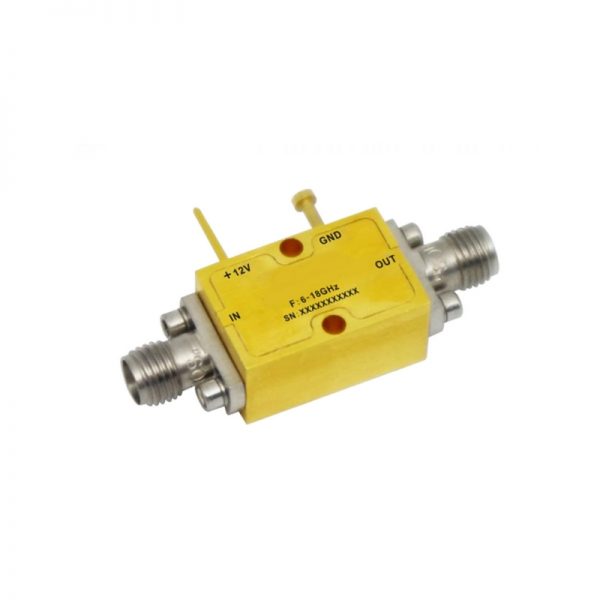

Ultra Wide Band Low Noise Amplifier From 6GHz to 18GHz With a Nominal 38dB Gain NF 2.2dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 6GHz to 18GHz With a Nominal 38dB Gain NF 2.2dB SMA Connectors

• Gain: 35dB Typical
• Noise Figure: 2.0dB Typical
• P1dB Output Power: +15dBm Typical
• Supply Voltage: +12V @ 180mA
• 50 Ohm Matched Input / Output
• Size: 0.79” x 0.51” x39”

SKU: OLNA306001800A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 35dB Typical
• Noise Figure: 2.0dB Typical
• P1dB Output Power: +15dBm Typical
• Supply Voltage: +12V @ 180mA
• 50 Ohm Matched Input / Output
• Size: 0.79” x 0.51” x39”



Data Sheet ( Download Datasheet PDF )

119-OLNA306001800A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

6

Max. Pass Band Frequency (GHz)

18

Gain (dB)

38

NF (dB)

2.2

P1dB (dBm)

15

IP3 (dBm)

26

VSWR

1.7

"Voltage (VDC)"

12

"Current (mA)"

180

Connection Type

SMA
