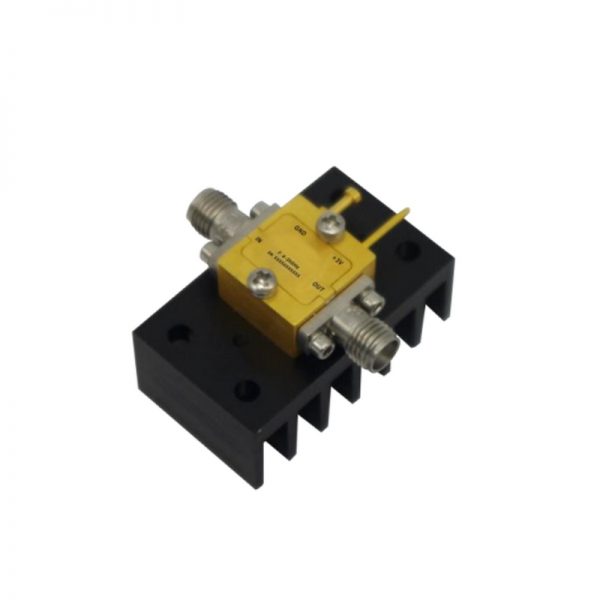

Ultra Wide Band Low Noise Amplifier From 6GHz to 20GHz With a Nominal 21dB Gain NF 2.5dB SMA Connectors

Ultra Wide Band Low Noise Amplifier From 6GHz to 20GHz With a Nominal 21dB Gain NF 2.5dB SMA Connectors

• Gain: 21dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +10dBm Typical
• Supply Voltage: +3V @ 53mA
• 50 Ohm Matched

SKU: OLNA206002000A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 21dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +10dBm Typical
• Supply Voltage: +3V @ 53mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

058-OLNA206002000A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

6

Max. Pass Band Frequency (GHz)

20

Gain (dB)

21

NF (dB)

2.5

P1dB (dBm)

12

IP3 (dBm)

23

VSWR

1.6

"Voltage (VDC)"

3

"Current (mA)"

53

Connection Type

SMA
