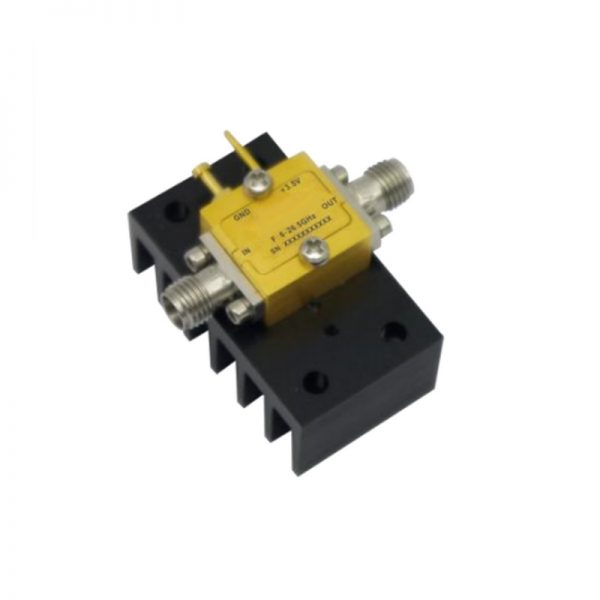

Ultra Wide Band Low Noise Amplifier From 6GHz to 26.5GHz With a Nominal 21dB Gain NF 2.5dB 2.92mm Connectors

Ultra Wide Band Low Noise Amplifier From 6GHz to 26.5GHz With a Nominal 21dB Gain NF 2.5dB 2.92mm Connectors

0 out of 5

• Gain: 21dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +10dBm Typical
• Supply Voltage: +3.5V @ 45mA
• 50 Ohm Matched

SKU: OLNA306002650A Categories: Low Noise Amplifier, Passive Devices

Description

Key Specifications

• Gain: 21dB Typical
• Noise Figure: 2.5dB Typical
• P1dB Output Power: +10dBm Typical
• Supply Voltage: +3.5V @ 45mA
• 50 Ohm Matched



Data Sheet ( Download Datasheet PDF )

067-OLNA306002650A



Applications

• Wireless Infrastructure
• RF Microwave & VSAT
• 5G communicationFiber Optics
• Test and measurement Instrument

Additional information

Min. Pass Band Frequency (GHz)

6

Max. Pass Band Frequency (GHz)

26.5

Gain (dB)

21

NF (dB)

2.5

P1dB (dBm)

10

IP3 (dBm)

18

VSWR

1.5

"Voltage (VDC)"

3.5

"Current (mA)"

45

Connection Type

2.92mm
